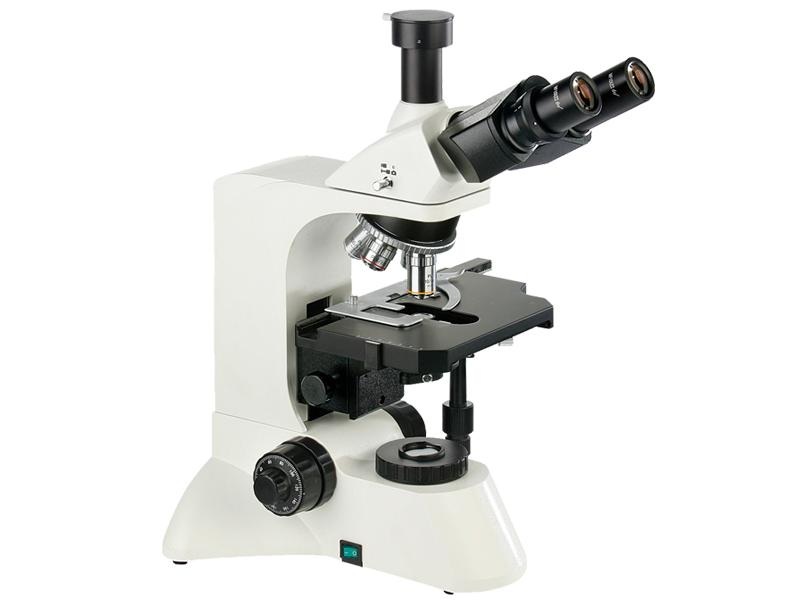

HINOTEK L3200HTG Biological Microscope (4X/0.10, 10X/0.25, 40X/0,65, 100X/1.25)

Eyepiece: WF10X(¦Φ22mm)

Objective: Infinity plan achromatic objective

PL 4X/0.10(Work distance)：21 mm

PL 10X/0.25(Work distance)：5.0mm

PL 40X/0.65(Spring)(Work distance)：0.66 mm

PL 100X/1.25(Spring, oil)(Work distance)： 0.36mm

Eyepiece tube: trinocular (Inclination of 30˚)

Focus system: Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2μm.

Nosepiece: Quadruple(Backward ball bearing inner locating)

Stage: Double layer mechanical (Size:210mmX140mm,Move range: 75mmX50mm)

Abbe condenser: N.A.1.25Rack & pinion adjustable

Filter: Blue filter; Frosted filter

Collector: For halogen lamp(With field diaphragm )

Light source: 6V 30W Halogen lamp with brightness control
