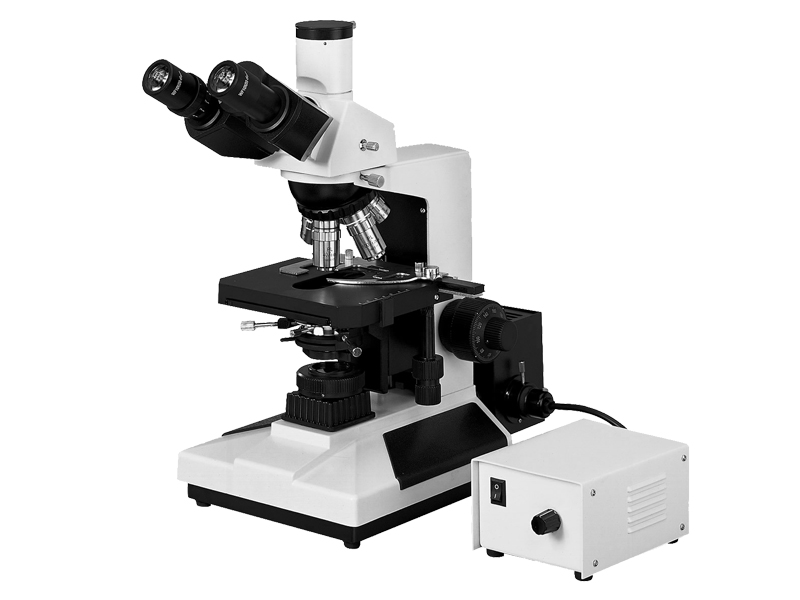

HINOTEK L2050 Biological Microscope (4X-100X)

Eyepiece: WF10X(Φ20mm)

Objective: Plan achromatic PL 4X/0.10; Plan achromatic PL 10X/0.25; Plan achromatic PL 20X/0.40; Plan achromatic PL 40X/0.65(Spring); Plan achromatic PL 100X/1.25(Spring, oil)

Eyepiece tube: Binocular(Inclination of 30˚)

Focus system: Coaxial coarse/fine focus, with tensional adjustable and up stop the minimum division of fine focusing: 2μm.

Nosepiece: Quintuple(Backward ball bearing inner locating)

Stage: Double layer mechanical (Size: 160mmx140mm, Move range: 75mmx50mm)

Abbe condenser: N.A.1.25 Rack & pinion adjustable

Filter: Blue filter; Frosted filter

Collector: For halogen lamp

Light source: 12V 50W Halogen lamp with brightness control.
