HINOTEK JJCC Magnetic Metal Tester (≥120mT, Without Board)

Technical Parameters of Magnetic Metal Tester

Power supply: AC (220±22) V, 50Hz, 1A

Motor (double scraper) speed:50r/min

Electromagnet suction: ≥40kg

Sample size: 1kg

Recovery rate: ≥95%

Dimensions: 255*275*385mm

Weight: 12kg

Magnetic seperation technical specification

Magnetic induction intensity: not less than 120mT

Strong magnetic area size: 130mm*130mm

Separation plate size: 210mm*210mm*6mm

The JJCC magnetic metal tester (including magnetic separation plate) is developed according to the latest national standard GB/T 5509-2008 “Grain, oil inspection, powder magnetic metal determination”, suitable for quality supervision, flour (and all kinds of grain powder ) Processing, grain storage and transportation, purchase and sale, scientific

Instrument introduction

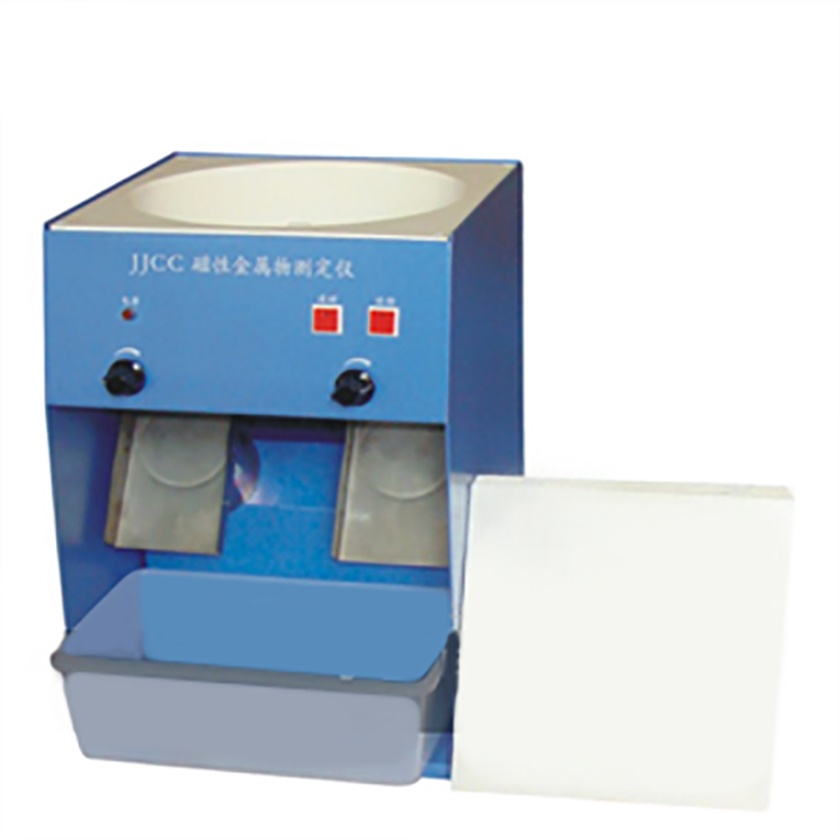

JJCC magnetic metal tester is also called magnetic metal tester (including magnetic separation plate), which is developed according to the latest national standard GB/T 5509—2008 “Cereal, oil inspection, powder magnetic metal determination” to test the magnetic properties of powdered grains Dedicated instrument for metal content. It is suitable for departments that need to measure the content of powdered magnetic metals, such as quality supervision, flour (and various grain powder) processing, grain storage and transportation, purchase and sale, scientific research and other departments.
