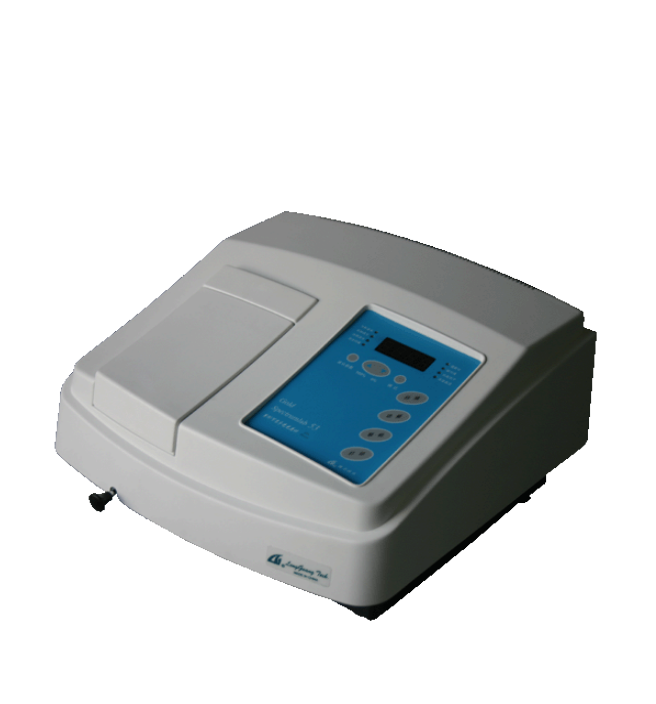

HINOTEK Glod S53 UV-Visible Spectrophotometer (200～1000nm)

Optical system： Diffraction grating C-T monochromator

Wavelength range： 200～1000nm

Light source：Hamamatsu L2D2 long life high stable deuterium & tungsten lamp combination

Receiver: Hamamatsu 1226 UV receiver

Wavelength accuracy: ±2nm

Wavelength repeatability: 0.5 nm

Transmittance accuracy: ±0.5%(t) (NBS SRM930D)

Transmittance repeatability: 0.3%(t)

Spectrum bandwidth: 4nm

Stray light: ≤0.2%(t) (360nm, NaNO2) (220nm, NaI)

Display scales:

(T)：0.0～199.9%

(A)：-0.3～2.999

(F)：1～9999

(C)：0～9999

Power source: 220V±22V 50Hz±1Hz

RS-232C serial port interface & standard parallel print port
