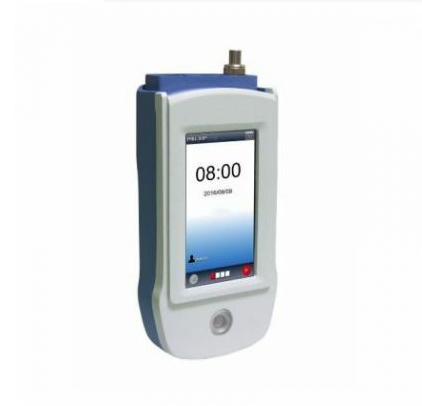

HINOTEK DZB-718L Portable Multi-Parameter Analyzer

Range:

pH/pX: (-2000.00 – 20000.00) pH; (0.000-14.000) pX

ORP: (-1999.9-1999.9) mV

Ion Conc.: (0-19990), Unit : mol/L, mmol/L, g/L, mg/L, µg/L

Conductivity: 0.000µS/cm-3000 mS/cm

Resistivity: 5.00Ω.cm – 100.00MΩ.cm

TDS: 0.000 mg/L – 300g.L

Salinity: (0.00 – 8.00) %

DO: (0.00 – 99.99) mg/L

DO Saturation: (0.0 – 600.0)%

Temp: (-5.0 – 130.0) ºC

Resolution:

pH/pX: 0.01pH/pX; 0.01 pH/pX

ORP: 0.01mV, 0.1mV

Conductivity: 0.001µs/cm

Resistivity: 0.01Ω.cm

TDS: 0.001mg/L

Salinity: 0.01%

DO: 0.01ml/L

DO Saturation0.01%

Temp.±0.1ºC

Basic Error:

pH/pX: ±0.002pH/pX

ORP: ±0.1mV or ±0.03%

Ion Conc.: ±0.3%

Conductivity: ±0.5% (FS)

Resistivity: ±0.5% (FS)

TDS: ±0.5% (FS)

Salinity: ±0.01%

DO: ±0.10mg/L

DO Saturation: ±2.0%

Temp.: ±0.1ºC

Power Supply: Li-on ( DC 3.8V)

Dimension (mm) & Weight (kg): 490*375*210; 5

Standard Configuration: Two-in-one pH combination electrode, DJS-T-L Platinum black conductivity electrode, T-818-L-ATC probe, pH buffer

Bigger color touchscreen with a lazy operation;

To support electrode management up to 25pcs electrodes;

To support Buffer group management, automatic identification of 25 kinds of buffer solutions, suh as DIN, NIST, MERK, JIS. Up to 8 point pH calibration and up to 5 point conductivity calibration;

To support ion concentration unit switch, such as ug/L, mg/L, g/L, mol/L, mmol/L

To support zero and full calibration, automatic and manual atmospheric pressure compensation;

To support storing 1000 sets of measurement results;

To meet GLP norm;

To support firm ware upgrade and contact with PC or auto sample;
