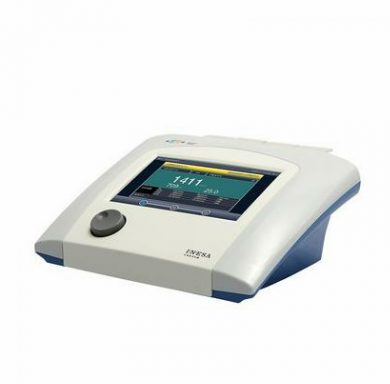

HINOTEK DDSJ-319L Conductivity Meter (0.000µS/cm ∼ 3000mS/cm)

Parameters: Conductivity, Resistivity, TDS, Salinity, Temp.

Range:

Conductivity: 0.000µS/cm ∼ 3000mS/cm

Resistivity: 5.00Ω.cm ∼ 100.00MΩ.cm

TDS: 0.000mg/L ∼ 1000g/L

Salinity: (0.00 ∼ 8.00) %

Temp: (-5.0 ∼ 135.0)°C

Basic Error:

Conductivity: ± 0.5%FS

Resistivity: ± 0.5%FS

TDS: :± 0.5%FS

Salinity: ± 0.5%FS

Temp: ± 0.1%

Calibration: ± 0.1°C

Stability: ± 0.17% (FS)/3h

Temp. Compensation: Auto & Manu (0∼50.0) °C

Power Supply: AC/DC Adapter; Input: 100-240V,50/60Hz,2.0A; Output: 24V, 2.7A

Dimension (mm) & Weight (kg): 370*305*330;5

Standard Configuration: DJS-1-L Platinum black conductivity electrode; T-818-L ATC probe

Conductivity measuring module

Colour touch screen with navigation

Measuring parameters: Conductivity, Resistivity, Total Dissolved Solid (TDS), Salinity and Temperature;

Supports automatic recognition function of conductivity standard solution, default four kinds of GB buffer solution. It supports up to five-point calibration.

Support multiple conductive compensation modes, including pure water compensation.

Support multiple salinity compensation modes, including pure water compensation.

Supports intelligent frequency conversion, which can meet full range measurement with one electrode.

Support USB and RS232 to connect with PC and Printer

Support firmware upgrade

Wide power supply: from 110V to 240V

Option: SCH-01 Auto Sampler
