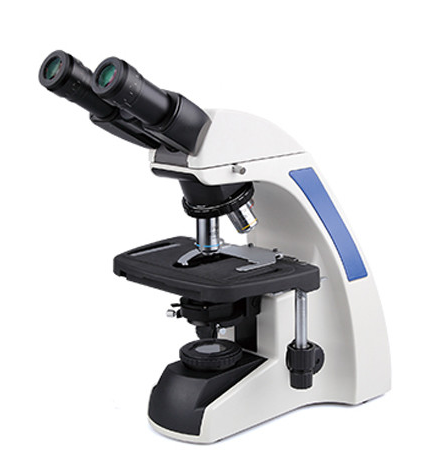

HINOTEK CM2000IFB Biological Microscope (4X-100X)

Optical System: Infinite Optical System

Viewing Head: Seidentopf Binocular Viewing Head, Inclined at 30º, Interpupillary 48mm-75mm

Eyepiece: Wide Field Eyepiece WF10X/F.N.22MM; Wide Field Eyepiece WF20X/F.N.12mm (options)

Nosepiece: Backward Quadruple Nosepiece; Backward Quintuple Nosepiece (options)

Objective: Infinite High Contrast Chromatic-free Full Plan Objectives 4X 10X 40X 100X

Condenser: NA1.25

Focusing System: Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm/Rotation, Fine Stroke 0.1mm/Rotation, Moving range 24mm

Stage: Double Layer Mechanical Stage 216 x 150mm , Graphite Surface, Moving Range 75mm x 55mm

Kohler Illumination: External Illumination, 3W/LED
