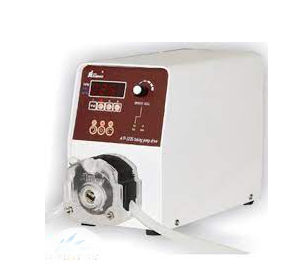

HINOTEK ATP-3200 Tubing Pump (1-460rpm)

Speed range: 1-460rpm continuously adjustable.

Speed resolution (rpm): 0.1

Speed stability (rpm): ≤ ± 0.3

Flow rate (mL / min): 14 # :0.25-116; 16 # :0.9-430; 25 :2-1000; 17 # :3-1550; 18 :4-2060

Maximum fluid pressure (Kg / c): 1.5

Sample viscosity (cps): 2000

Sample temperature (℃): -10-100

Work environment thermometer :0-50 ° C, the relative humidity: ≤ 80%

The direction of fluid: positive / negative

Dimensions (mm): 120W x 230H x 270D

Power supply (V): 220 ± 15%

Power (W): 150

Net weight (Kg): 5.5

Datasheet
