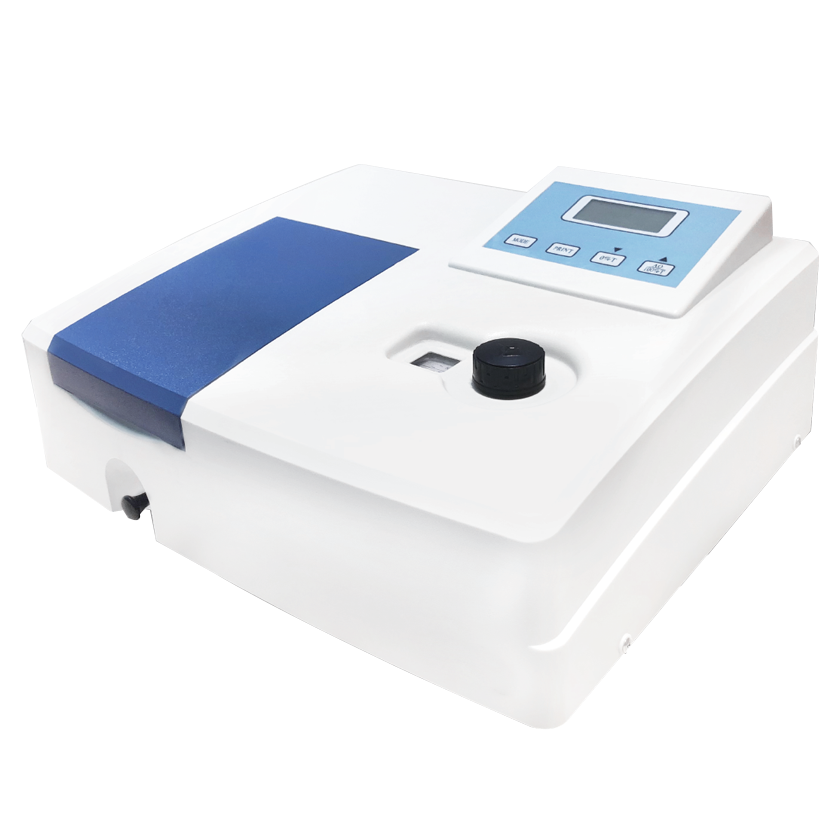

HINOTEK 721G Spectrophotometer (340-1000nm)

Photometry: Split Beam

Monochromator Type: Czerny-Turner

Focal Length: 160mm

Grating: 1200 lines/mm

Detector: Silicon Photocell

Spectrum Bandwidth: 5nm

Wavelength Setting: Manual Turn Knob

Wavelength Range: 340-1000nm

Wavelength Accuracy: ±2nm

Wavelength Repeatability: ≤1nm

Stray Light: ≤0.5%T( at 360nm NaNo2 )

Photometric Range: 0.0-100.0%T, 0.000-1.999 A, 0.000-1999 C

Photometric Accuracy: ±0.5% T, ±0.004 Abs (0-0.5A), ±0.008 Abs (0.5-1A)

Noise: 100% (T) noise≤0.3%(T), 0%（T）noise≤0.2%(T)

Power: AC220V±22V 50Hz±1Hz, 130W

Packaging Size: 560mm X 490mm X 285mm 0.08M3 14kg

Standard Accessories:

- Operation manual 1

- UV WIN8 Spectrum data processing software

- Glass cuvette 1cm 4pcs

- Power cable 1

- Cuvette holder 100mm

Optional Accessories:

-Thermal Plotter
