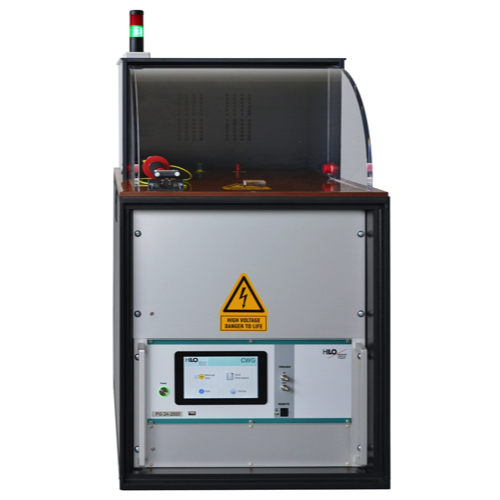

HILO-test PG 24-2500 Surge Test Generator (1.2 / 50 µs, 0.5 - 24 kV; 8 / 20 µs, 0.2 – 12 kA)

Mainframe

Microprocessor controlled touch panel: 7”, capacitive

Optical Ethernet Interface for remote control of the generator: optional

Interface for saving reports: USB

External trigger input/output: Switch / 10 V

Coupling-/decoupling network for power supply lines: L1, N, PE

Nominal voltage, nominal current AC/DC: 250 V, 16 A ≈ / 16 A =

Coupling impedance: 18 µF / 9 µF + 10 Ω

Connector for external safety interlock loop: 24 V =

External red and green warning lamps: 24 V =, 40 mA

Mains power: 230 V, 50/60 Hz

Dimensions of desk top case (W * H * D): 556*620*800 mm³

Weight: 115 kg

Test Parameters

Test voltage (open circuit condition): 0.5 - 24.0 kV ± 10 %

Waveform acc. to IEC 60060: 1.2 / 50 µs ± 30/ ± 20 %

Test current (short circuit condition): 0.2 - 12 kA ± 10 %

Waveform acc. to IEC 60060: 8 / 20 µs ± 20 %

Polarity of output voltage/current, selectable: pos/neg/alt

Maximum stored energy: 2500 Joule

Charging time for max. charging voltage: < 40 s

HV output isolated from ground: HV-OUT

Mains synchronous triggering, phase shifting, digitally selectable: 0 - 359°, step 1°

Display of peak values of impulse voltage and impulse current: built-in

Monitor output for pulse output voltage: ratio = 2000:1 ± 5 %

Monitor output for pulse output current: 12 V = 12 kA ± 5 %

Ground rod for manual security earthing of the HV output: built-in
