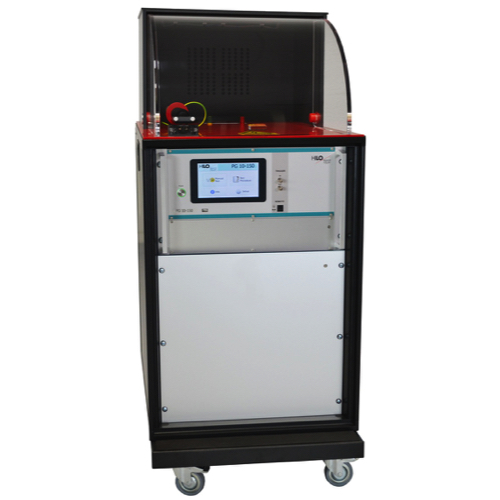

HILO-test PG 10-150 Flammability Test (± 0.5-10 kV ; 3 µF; 300V / 16A)

Mainframe

Microprocessor controlled touch panel: 7”, capacitive

Optical Ethernet Interface for remote control of the generator: optional

Interface for saving reports: USB

External Trigger input/ output: switch/ 10 V

Connector for external safety interlock loop: 24 V =

External red and green warning lamps acc EN 50191 (VDE 0104): 24 V=, 40 mA

Mains power: 230V, 16A, 50/60 Hz

Dimension: Case without protective cover, 24HE, on 4 wheels (2 lockable)

Size (W * H * D): 550 * 1100 * 800 mm³

Weight: 85 kg

AC voltage source

Output voltage, adjustable: 0 - 300 V

Output current, max: 16 A

Filter capacitor: 1 µF

Series inductor: 3 mH

Parallel capacitor C3, can be switched off: 33 nF

High voltage impulse generator

Charging voltage, adjustable: ± 0.2 - 10 kV

Polarity: Pos / neg / alt

Charging current: ca. 10 mA

Energy storage capacitor: 3 µF

Series damping resistor R, switchable: 5 / 10 / 40 / 100 Ω

The pulse-forming networks according to IEC 60384-14 are adjustable

High voltage switch S, triggerable: built-in

DUT connection, pluggable, on the top of the unit

Series resistor for current limiting: built-in
