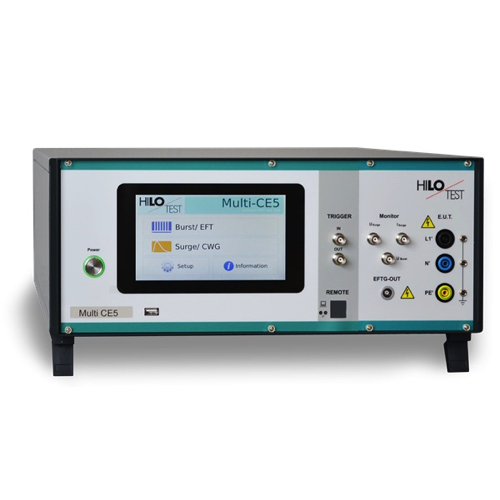

HILO-test Multi-CE5 Compact EMC-Tester (BURST 5kV, 5/50 ns; SURGE 5kV, 1,2/50µs; SURGE 2.5kA, 8/20µs)

Mainframe

Microprocessor controlled touch panel 7”, capacitive

Optical Ethernet Interface for remote control of the generator: optional

Interface for saving reports: USB

External trigger input/output: Switch / 10 V

Connector for external safety interlock loop: 24 V =

External red and green warning lamps: 24 V=, 40 mA

Mains power: 90 V - 264 V, 50/60 Hz

Dimensions of desk top case (W × H × D): 450 × 180 × 500 mm³

Weight: 25 kg

Internal 1-phased de-/coupling network (CDN)

Coupling-/decoupling network for power supply lines: L1, N, PE

Nominal voltage, nominal current: 300 V, 16 A ac/dc ≈ / 300 V, 16 A =

Coupling impedance (depending on the generator): 33 nF / 18 µF / 9 µF + 10 Ω

BURST acc. to IEC 61000-4-4: 2012

Pulse output voltage, adjustable: 0.2 - 5 kV ± 10 %

Waveform: 5/50 ns

SURGE acc. to IEC 61000-4-5: 2014

Test voltage (open circuit condition): 0.2 - 5.0 kV ± 10 %

Waveform acc. to IEC 60060: 1.2 / 50 µs ± 30/± 20 %

POWER FAIL acc. to IEC 61000-4-11/29: 2020/2020

Rated current / Inrush current: max. 16 A / 500 A

Monitor output for mains voltage and mains current: built-in

AC

Rise and fall time at 100 Ω load: 1 – 5 µs

Dip durations: 0 – 10000 cycles (0 – 200 s)

Step: 1° = 55.56 µs at 50 Hz

Display: mains voltage, mains current and inrush current

DC

Rise and fall time at 100 Ω load: 1 – 50 µs

Dip durations: 1 ms – 10 s

Interface: control of an external power source
