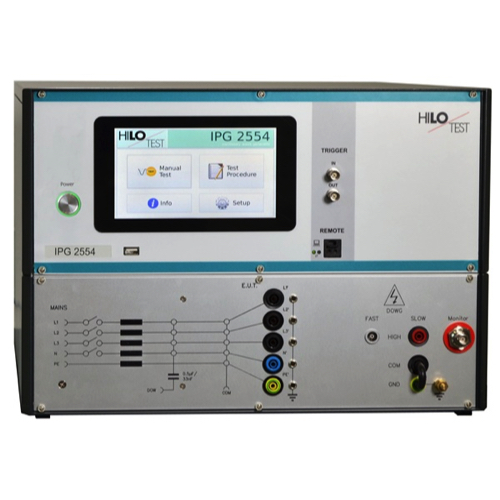

HILO-test IPG 2554 Oscillatory Wave Generator (100 kHz, 1 MHz; 1-3-Ph)

Mainframe:

Microprocessor controlled touch panel: 7”, capacitive

Optical Ethernet Interface for remote control of the generator: optional

Interface for saving reports: USB

External trigger input/output: Switch / 10 V

Coupling-/decoupling network for power supply lines: L1, L2, L3, N, PE

Connector for external safety interlock loop: 24 V=

External red and green warning lamps: 24 V=, 40 mA

Mains power: 90V - 264V, 50/60 Hz

Dimensions of desk top case (W * H * D): 450 * 330 * 500 mm³

Weight: 35 kg

Slow Damped Oscillatory:

Peak1 open circuit voltage: 200V to 3 kV (± 10%)

Oscillation frequencies: 100 kHz | 1 MHz (± 10%)

Repetition rate: 40 Hz – 400 Hz (± 10%)

Voltage rise time (first peak): 75 ns ± 20%

Voltage decay:

Peak5: > 50 % of Peak1 value

Peak10: < 50 % of Peak1 value

Fast Damped Oscillatory:

Peak1 open circuit voltage: 200V to 4 kV (± 10%)

Oscillation frequencies: 3 MHz | 10 MHz | 30 MHz (± 10%)

Repetition rate: 40 – 5000 Hz (± 10%)

Voltage rise time (first peak): 5 ns ± 30%

Voltage decay:

Peak5: > 50 % of the Peak1 value

Peak10: < 50 % of the Peak1 value

Coupling- / Decoupling Network for AC/DC power supply ports (CDN 2554-16):

Coupling capacitor, slow pulses: 0.5 µF

Coupling capacitor, fast pulses: 33 nF

Isolation withstand capability of the coupling capacitors with the 1.2/50µs wave: 5 kV
