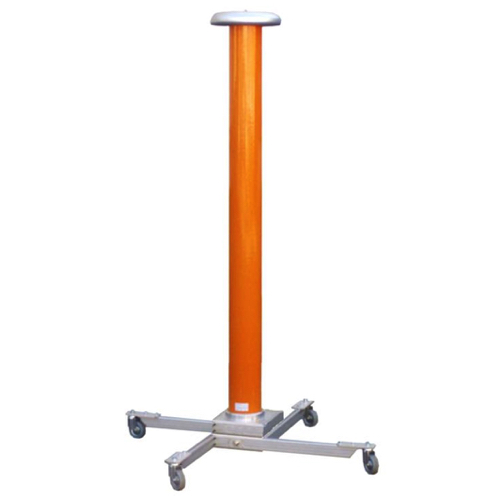

HILO-test HVT 240 RCR Broadband High-Voltage Dividers (240 kVDC; 180 kVAC)

Rated input voltage (DC): 240 kV

Rated input voltage (AC eff.): 180 kV

Rated input voltage (Pulse 1.2/50µs): 360 kV

Divider ratio (DC): 5000:1 (± 1%)

HV-resistor: 360 MΩ

HV-capacitor: 190 pF

Rise time: 48 ns

Bandwidth: 7.3 MHz

Dimensions:

Socket (∅/L x B x H): -

Undercarriage (L x W): 1.2 x 1.2

Wheels / lockable: 4/2

Height: 1880 mm

Weight: 40 kg

Cable length: 20 m

Environment Conditions

Temperature range: 5 °C - 40 °C

Temperature error: < 0.2 % (from -5 °C to 40 °C)

Relative humidity: Maximum 80% for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C

Operating Altitude: Up to 1000 m above sea level
