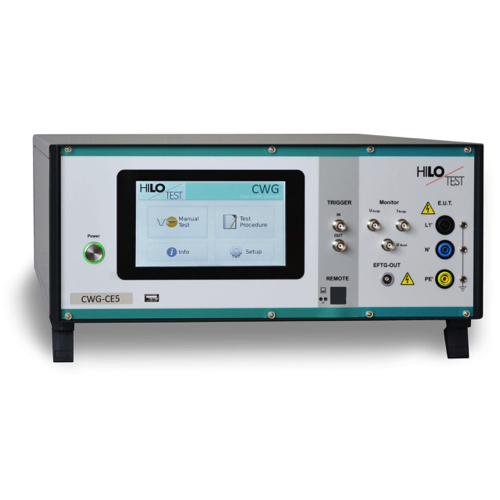

HILO-test CWG-CE5 Compact EMC-Tester (5 kV, 1.2/50 µs; 2.5 kA, 8/20 µs)

Mainframe

Microprocessor controlled touch panel: 7”, capacitive

Optical Ethernet Interface for remote control of the generator: optional

Interface for saving reports: USB

External trigger input/output: Switch/10 V

Connector for external safety interlock loop: 24 V =

External red and green warning lamps: 24 V=, 40 mA

Mains power: 90V - 264V, 50/60 Hz

Dimensions of desk top case (W * H * D): 450*180*500 mm³

Weight: 25 kg

Internal 1-phased de-/coupling network (CDN)

Coupling-/decoupling network for power supply lines: L1, N, PE

Nominal voltage, nominal current: 300 V, 16 A AC/DC ≈ / 300 V, 16 A =

Coupling impedance (depending on the generator): 33 nF / 18 µF / 9 µF + 10 Ω

SURGE acc. to IEC 61000-4-5: 2014

Test voltage (open circuit condition): 0.2 - 5.0 kV ± 10 %

Waveform acc. to IEC 60060: 1.2 / 50 µs ± 30/ ± 20 %

Test current (short circuit condition): 0.1 - 2.5 kA ± 10 %

Waveform acc. to IEC 60060: 8 / 20 µs ± 20 %

Polarity of output voltage/current, selectable: pos/neg/alt

Maximum stored energy: 120 Joule

Charging time for max. charging voltage: max. 1 Hz (min. 1 – 10 s)

HV output isolated from ground: HV-OUT, 4 mm

Mains synchronous triggering, phase shifting, digitally selectable: 0 - 359°, step 1°

Monitor output for pulse output voltage: ratio = 1000:1 ± 5 %

Monitor output for pulse output current: 10 V ≙ 5 kA ± 5 %
