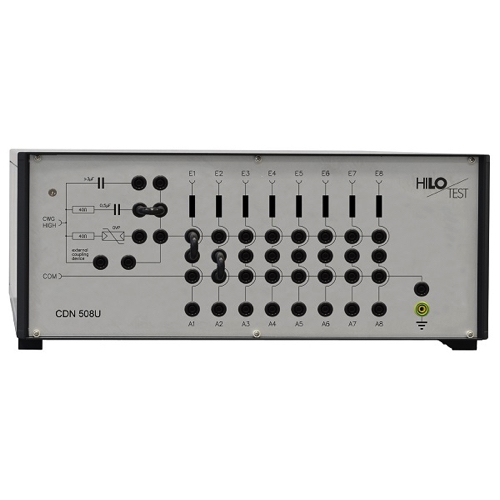

HILO-test CDN 508 U Unsymmetrical Coupling-/Decoupling Network (5.0 kV, 1.2/50 μs; 10/700 μs)

For applying the impulse output voltage of the Combination Wave /Ring Wave Generator to interconnection lines of the equipment under test, acc. to IEC 61000-4-5/12

Rated voltage: 250VAC / 350VDC

Rated current: 6A

Max. test voltage: 5.0 kV, 1.2/50µs, 10/700 µs

Max. test current: 2.5 kA, 8/20µs

Coupling Impedance, selectable:

Surge Coupling acc. IEC 61000-4-5: 40Ω + 0.5μF; 40Ω + OVP

Ringwave Coupling acc. IEC 61000-4-12: >3 μF

Decoupling inductors, current compensated: L1 – L4: 20 mH

Dimensions: 19"-cabinet W * H * D 450*180*360mm³

Weight: 9.5 kg
