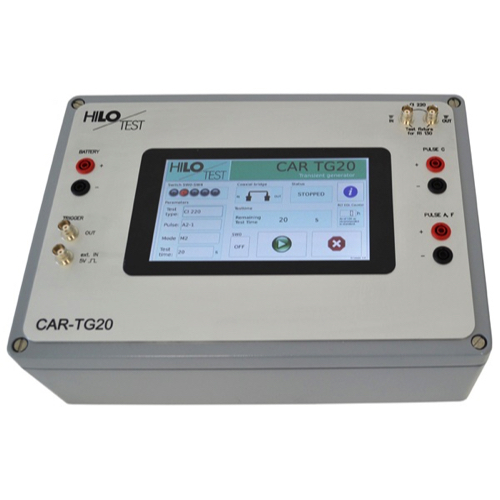

HILO-test CAR-TG 20 Transient Immunity Test Generator (9 V – 56 VDC)

Mainframe

Microprocessor controlled touch panel: 7”, capacitive

Mains power / BAT-IN: 9 V – 56 VDC

Dimensions (case, W × H × D): 330 × 115 × 230 mm³

Weight: 8 kg

Technical Specifications

Resistor R1: 51 Ω, 0.25 W

Resistor R2: 220 Ω, 2 W

Resistor R3: 33 Ω, 10 W

Resistor R4: 6 Ω, 50 W

Capacitor C1: 100 nF PETP polyester film capacitor, 400 V

Inductor L1: 5 µH inductor (Osborne transformer #8745)

Inductor L2: 100 mH inductor (Osborne transformer #32416)

Diode D1: Zener diode, 39 V, 5 W

Transistor Q1: NPN transistor

Switch SW0–SW4: Single Throw Switch

Relay RLY1: 12 V AC relay, NC contact used (Potter & Brumfield KUP-14A15-12)
