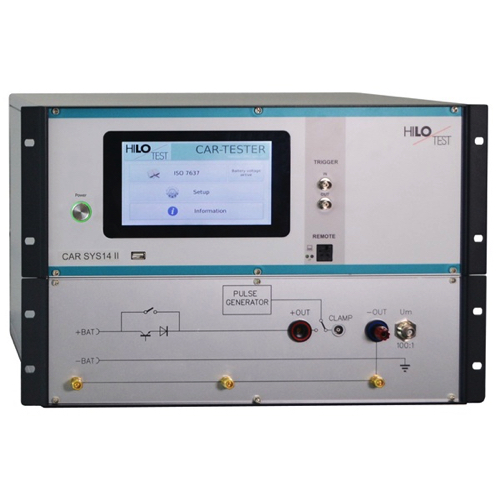

HILO-test CAR-TEST-SYSTEM 14 Test Equipment For Electrical Installation Of Vehicles (90V - 264V, 50/60 Hz; 100:1, 1 kV-peak)

For testing electromagnetic immunity of the electrical installation of vehicles and components against supply line transients.

Mainframe

Microprocessor controlled touch panel: 7”, capacitive

Ethernet Interface: Built-in, for remote control of the generator

Interface for saving reports: USB

External trigger input/output: Switch / 10 V

Connector for external safety interlock loop: 24 V=

External red and green warning lamps: acc. to VDE 0104, 24 V=, 40 mA

Cooling: Controlled fans and heat sink

Mains power: 90V - 264V, 50/60 Hz

Dimensions (case, 7 HE, W × H × D): 450 × 310 × 500 mm³

Weight: 35 kg

Measurement Equipment

Impulse voltage divider: 4.95 kΩ / 50 Ω, 100:1, 1 kV-peak

Power supply switch:

Output current (depending on system type): 50 A, 100 A, 200 A

Max. reverse voltage: 800 V

Transient over voltage protection: >1000 V

High short circuit current capability: 900 A

Protection with automatic circuit breaker: 50 A, 100 A, 200 A

Amplifier sense line decoupled from output: built-in

Trigger input, connectable to external modules: built-in

Integrated pulse forms: According to ISO 7637-2, 2011

Included Pulse

Pulse 1: 1-5/2000µs

Pulse 2a: 1 / 50µs

Pulse 3: 5/150 ns
