HILO-test CAR-TE 21 Modular EMC-Test Equipment For Electrical Installation Of Vehicles (24 V=, 1 A)

Check the transient transition behavior when switching loads on the vehicle electrical system

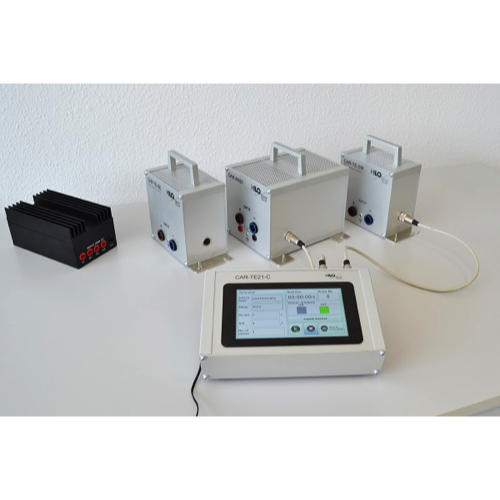

CAR-TE21-C – Control Unit (Mainframe)

Microprocessor controlled touch panel: 7”, capacitive

Ethernet Interface: Built-in, for remote control of the generator

Interface for updates: USB

Trigger control: Manual, programmed sequence, external

Trigger output: Built-in

Mains power: 24 V=, 1 A

Featuring: Support feet 20°

CAR-TE21-SE – Electronically Switch Unit

Max. operating voltage: 70 V

Max. operating current: 50 / 100 A

High short circuit current capability: 500 A for 200 ms

Voltage drop over switch at 25 A: <2.0 V

Switching time: 300 ns ±20%

Transient over voltage protection: Varistor

Nominal voltage: 0 - 100%

Turn off time: 0.1 - 1000 s

Period: 0.01 - 1000 s

Number of tests: 1 – 1000; infinity

Cooling system: Fan

CAR-TE21-SM – Mechanically Switch Unit

Type: Automotive relay; no suppression across contacts

Life time counter: Built-in

Voltage rating: >400 V

Switching time: 200 ms

Turn off time: 1 - 1000 s

Period: 0.5 - 1000 s

Number of tests: 1 – 1000; infinity

CAR-AN21 – Artificial Network

Max. operating voltage: 1000 V= / 250 V≈ (1 kHz)

Max. operating current: 50 / 100 A

Series inductance: 5 µH

Load impedance: 0.1 µF + 50 Ω

Frequency range: 0.1 – 125 MHz

Cooling system: Fan at 100 A version

CAR-TE21-R – Load Resistor

Resistor values: 10 Ω, 20 Ω, 40 Ω, 120 Ω

Maximum voltage/power: 30 V / 90 W
