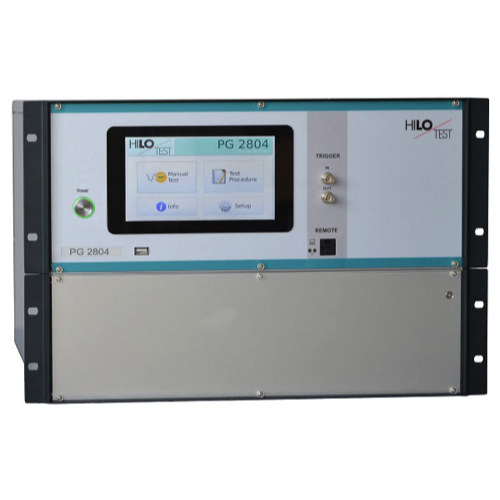

HILO-test CAR PG 2804 Load Dump Generator (230 V, 50/60 Hz)

For testing electromagnetic immunity of the electrical installation of vehicles and components against supply line transients.

Mainframe

Microprocessor controlled touch panel: 7”, capacitive

Ethernet Interface: Built-in, for remote control of the generator

Interface for saving reports: USB

External trigger input/output: Switch / 10 V

Connector for external safety interlock loop: 24 V=

External red and green warning lamps: acc. to VDE 0104, 24 V=, 40 mA

Mains power: 230 V, 50/60 Hz

Dimensions (desk top case, W × H × D): 450 × 330 × 500 mm³

Weight: 35 kg

Pulse Generator

Charging voltage: Adjustable 0 – 202 V ±10%

Max. storage energy: 800 Wsec

Repetition time: min. 10 sec – max. 1000 sec

Pulses

Pulse #5: 10 / 400 ms

Test A: 10 / 350 ms

Test B:

10 / 300 ms

10 / 250 ms

10 / 200 ms

10 / 150 ms

10 / 100 ms

10 / 40 ms
