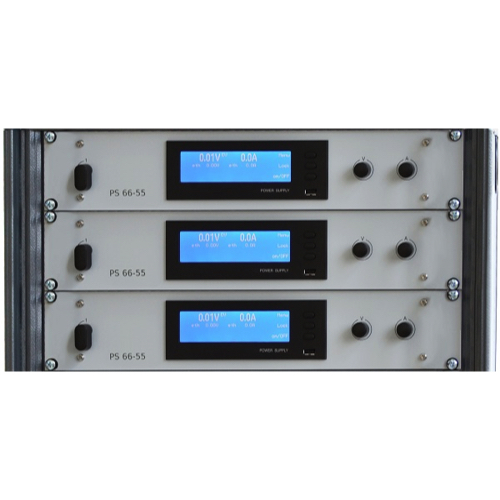

HILO-test CAR LD-PS Amplifier Load Dump

Mainframe

Ethernet Interface for remote control: Built-in

Connector for external safety interlock loop: Built-in

Mains power: 400 V, 50/60 Hz

Dimensions (case, 6 HE, W × H × D): 483 × 352 × 500 mm³

Weight: 45 kg

PC Software for Remote Control (Windows)

Software “CAR-Remote” for remote control of the generator, Included 5 m fiber optic cable and Ethernet PC interface: PC needed

Load Dump Generator (according to ISO 16750-2)

Test Method: Test A for UN 12 V / 24 V

Test Method: Test B (suppression) for UN 12 V / 24 V

Us (voltage): 0 – 202 V, step 1 V

Imax (maximum current): 55 A

Ri (only in combination with CAR-SYS): 0.5 – 8 Ω; step 0.5 Ω (0.8 Ω selectable)

td (pulse duration): 40 – 1000 ms, step 1 ms

tr (rise time): 2 – 20 ms, +0 / -5 ms, step 1 ms

Repetition: 1 – 100 s, step 1 s

Datasheet
