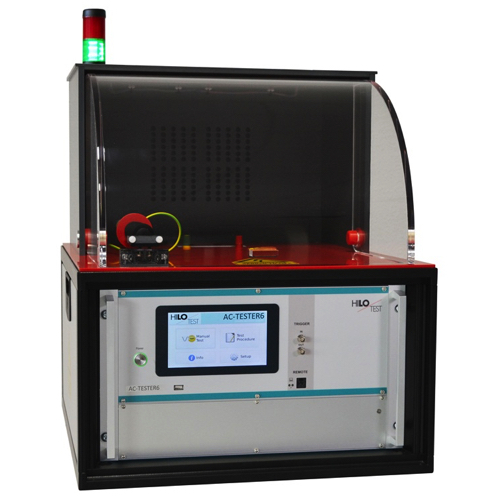

HILO-test AC-TESTER 6 Alternating Voltage Testing Set (100 - 10 000 V=; 1 - 100 mA)

Mainframe

Microprocessor controlled touch panel: 7”, capacitive

Optical Ethernet Interface for remote control of the generator: optional

Interface for saving reports: USB

External Trigger input/ output: Switch/ 10V

Connector for external safety interlock loop: 24 V=

External red and green warning lamps: 24 V=, 40 mA

Mains power: 230 V, 50/60 Hz

Dimensions of desk top case (W * H * D): 453 * 320 * 520 mm³

Weight: 40 kg

HV-Generator Section

Test voltage, adjustable: 100 - 10,000 V~

Test current: 1 - 100 mA

Test current, adjustable: 2 - 100 mA

Short circuit current (according to VDE 0551): > 200 mA

Test mode, available: turn-off / burn

High voltage output, referred to ground: 4 mm ∅

External measurement output for the test voltage: coaxial, BNC

Tolerance of output voltage amplitude: ± 2% v.E.W.

Rise of sinus voltage ramp, adjustable: 0.1 kV/s - 10 kV/s

Test time, adjustable (1 sec/Step, turn-off & burn): 1 - 100 sec

Test time, adjustable (10 sec/Step, turn-off only): 1 - 1000 sec

Test cabinet, PA 504

Safety interlock connector: break contact, 24V-dc

Red and green warning lights (acc. to VDE 0104): 220V / 10 W

High-voltage output connector: 4 mm ∅

Interconnection cable: 0.5 m long

Dimensions (W * H * D): 555 * 480 * 600 mm³

Test space (W * H * D): 460 * 300 * 550 mm³

Ground rod included

Accessories: Mains cable, Key, Ground rod, Instruction manual.

Datasheet
