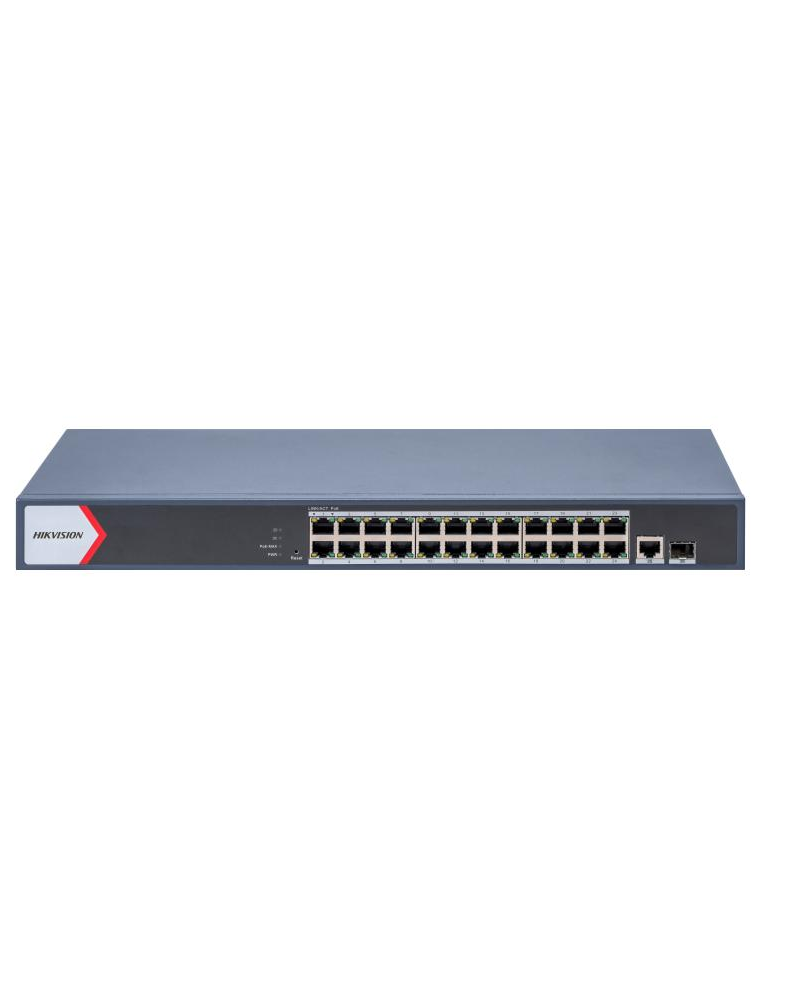

Hikvision DS-3E1526P-EI/M Switch (24 Port Gigabit POE)

General

Shell: Metal material

Net Weight: 2.96 kg (6.52 lb)

Gross Weight: 3.2 kg (7.05 lb)

Dimensions (W × H × D): 440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')

Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)

Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity: 5% to 95% (no condensation)

Relative Humidity: 5% to 95% (no condensation)

Power Supply: 100~240 V AC, 50/60 Hz, Max. 4 A

Installation Mode: Rack (equipped with mounting ears)

Max. Power Consumption: 250 W

Power Consumption in Idle: 30 W

Surge Protection: 6 kV

Network Parameters

Ports: 24 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port

MAC Address Table: 8 K

Switching Capacity: 56 Gbps

Packet Forwarding Rate: 41.66 Mpps

Internal Cache: 4.1 Mbits

PoE Power Supply

PoE Standard: IEEE 802.3af,IEEE 802.3at

PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port PoE: Ports 1 to 24

Max. Port Power: 30 W

PoE Power Budget: 230 W
