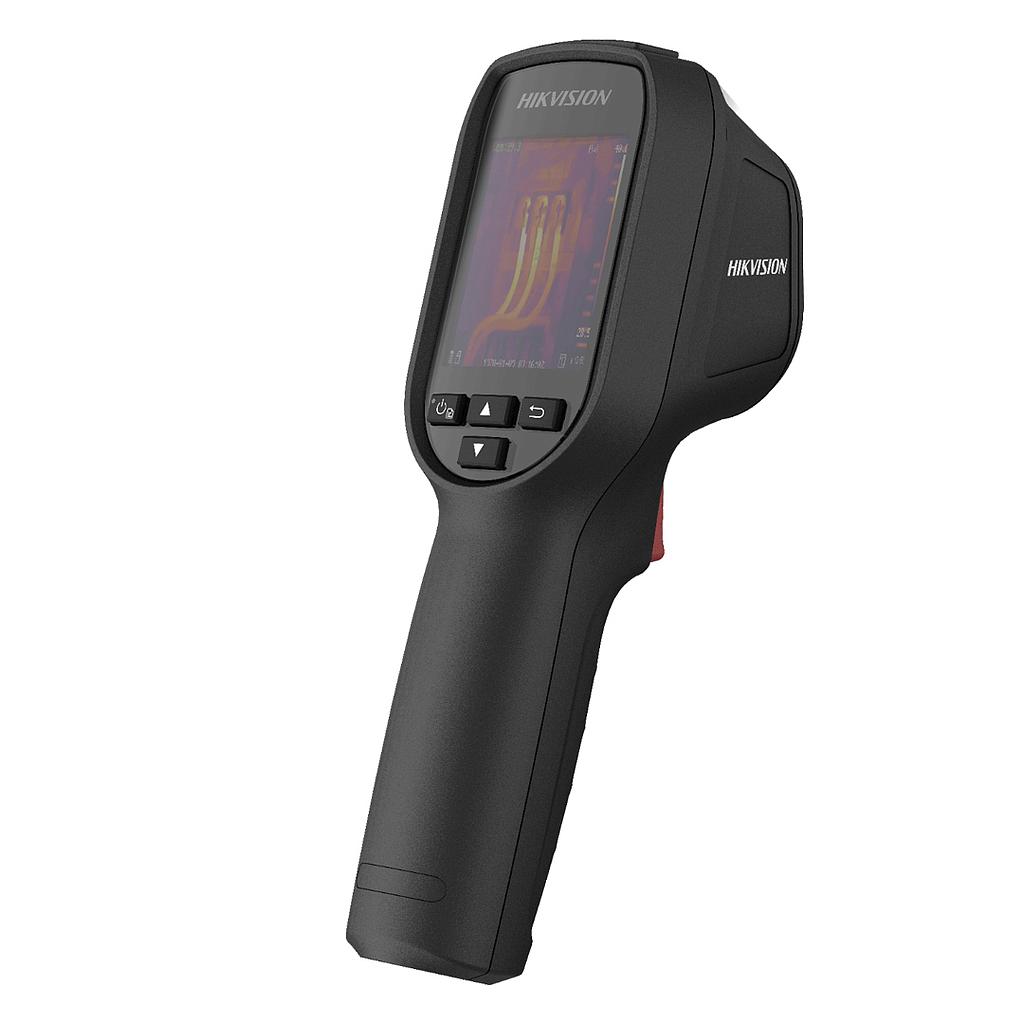

Hikvision DS-2TP31-3AUF Thermographic Handheld Camera (-20~550°C; 160×120 pixels)

Thermal Module

Image Sensor: Uncooled Focal Plane Arrays

Max. Resolution: 160 × 120

NETD: < 40mk (@ 25 °C,F#=1.0)

Field Of View: 37.2° × 50 °

Aperture: F 1.1

Pixel Pitch: 17μm

Focal Length: 3.1 mm

IFOV (Mrad): 5.48 mrad

Response Waveband: 8μm to 14μm

Image Display

Monitor: 320 × 240 resolution 2.4’ LCD display

Palettes

Black hot, White hot, Rainbow, Ironbow

Thermography: Rules

3 thermometry points: Max. Temperature; Min. Temperature; Center Temperature

Thermometry Range: -20 °C to 550 °C (-4 °F to 1022 °F)

Thermometry Accuracy: Max (±2 °C, ±2%)

Battery

Battery Type : Rechargeable Lithium Battery

Battery Operating Time: 8 hours continuous running

Accessory

Power Adaptor, USB cable, 8GB memory card, User manual, Disk, Wrist Strap
