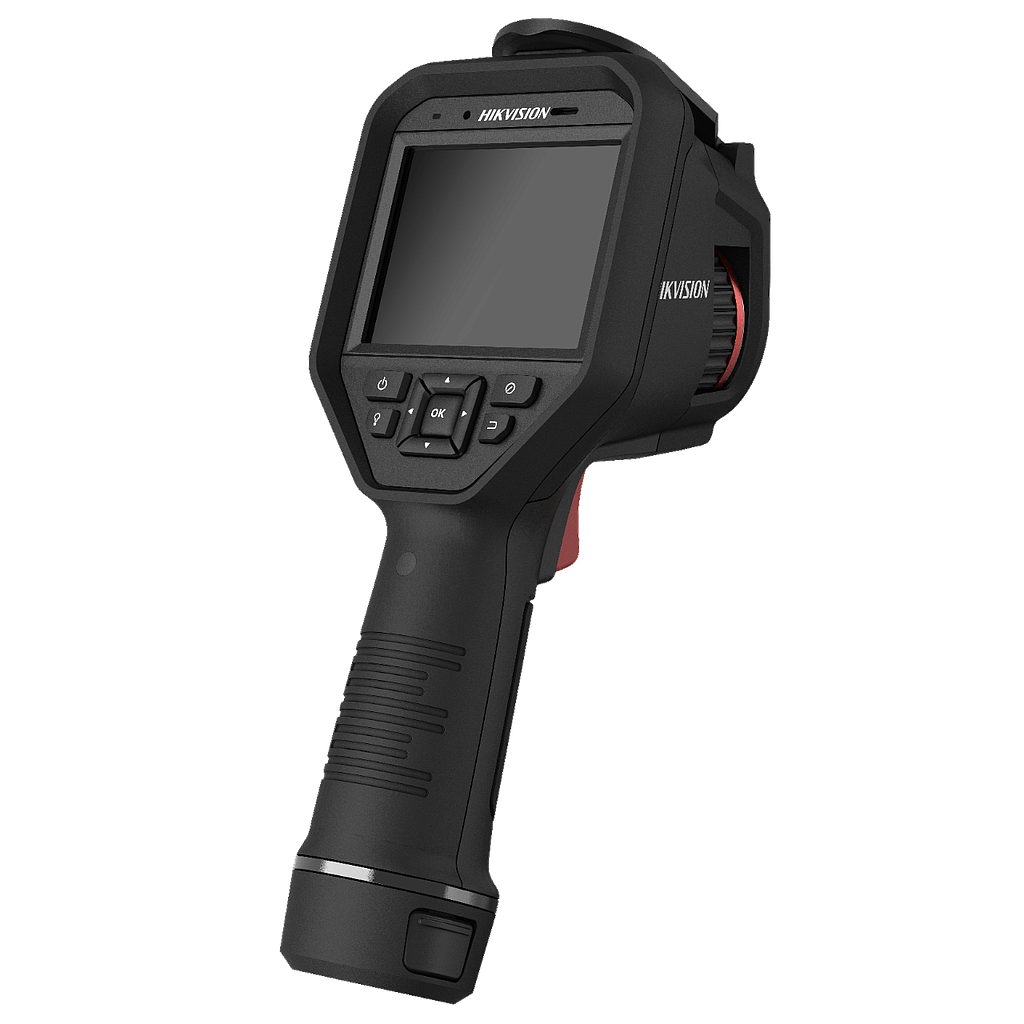

Hikvision DS-2TP23-10VF/W Handheld Thermography Camera (-20~550°C; 384 x 288 pixels)

Thermal module

Image sensor: Uncooled Focal Plane Arrays, VOx

Max. Resolution: 384 x 288 @ 25 Hz

Pixel Pitch: 17 μm

NETD: < 40 mK (@ 25 °C, F#=1.0)

Field of View: 37.5° × 28.5 °

Focal Length: 10 mm (manual focus

IFOV: 1.7 mrad

Aperture: F 1.0

Optical module

Max. Resolution: 1920 x 1080

Monitor: 640 x 480 resolution 3.5’’ LCD touch display

Palettes: Black hot, White hot, Red hot, Rainbow, Ironbow, Fusion, Rain

Image Display

Digital Zoom: Thermal: 1×, 2×, 4×

Thermal/ optical: Thermal / Optical / Image Fusion / Picture in picture

Video Recording: Supports on-board video recording

Thermography

Rules: Max. temperature; min. temperature; center temperature

Custom point, line and frame Thermography

Range: -20 °C to 550 °C (-4 °F to 1022 °F)

Accuracy: Max (±2 °C, ±2%)

Battery

Battery Type: Replaceable and rechargeable lithium battery

Operating Time: Max 4h

Operating Temperature: -10 °C to 50 °C (14 °F to 122 °F)

Protection level: IP54

Dimension: 244 mm x 100 mm x 104 mm (9.6“ x 3.9“ x 4.1“ )

Weight: 660 g (1.46 lb)

Accessories: Charger/power adapter/USB cable/64G memory card/User manual/ wrist strap/ box
