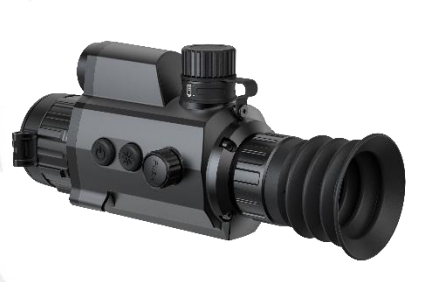

HIKMICRO PH35L Thermal Image Scope (384 × 288 pixel)

Thermal Module

Image Sensor: Uncooled Focal Plane Array

Max. Resolution: 384 × 288

Frame Rate: 50 Hz

Pixel Interval: 12 μm

Response Waveband: 8 μm to 14 μm

NETD: < 35 mK (25°C, F# = 1.0)

Lens (Focal Length): 35 mm

Detection Range: 1800 m

Field of View: 7.53° × 5.65°

Min. Focusing Distance: 2 m

Aperture: F1.0

Magnification: 3.03×

Image Display

Display: 1024 × 768, 0.39 inch, OLED

Image: Mode Black Hot, White Hot, Red Hot, Fusion

FFC (Flat Field Correction): Mode Auto, Manual, External Correction

Exit Pupil: 6 mm

Eye Relief: 45 mm

Diopter (Range): -5 D to 3 D

Power Supply

Battery Type: One Rechargeable Lithium battery

Battery Operating Time: 6 hours continuous running (@25°C, Wi-Fi and CVBS off)

Battery Capacity Display: Yes

Anti-reverse Battery Connection: Yes

Overvoltage Protection: Yes

Type-C Power Supply: 5 V DC/2 A, USB Type-C interface3, Supports external power supply

General

Work Temperature/Humidity: -30°C to 55°C (-22°F to 131°F)

Protection Level: IP67

Dimension: 200.38 × 66.32 × 87.10 mm (7.89 × 2.61 × 3.43 inch)

Weight: < 518 g without eyepiece and batteries

Port: Type-C

Laser Rangefinder

Safety Class for Laser: Class 1

Wavelength: 905 nm

Max. Measuring Range: 600 m

Measurement Accuracy: ± 1 m

Min. Measuring Range: 10 m
