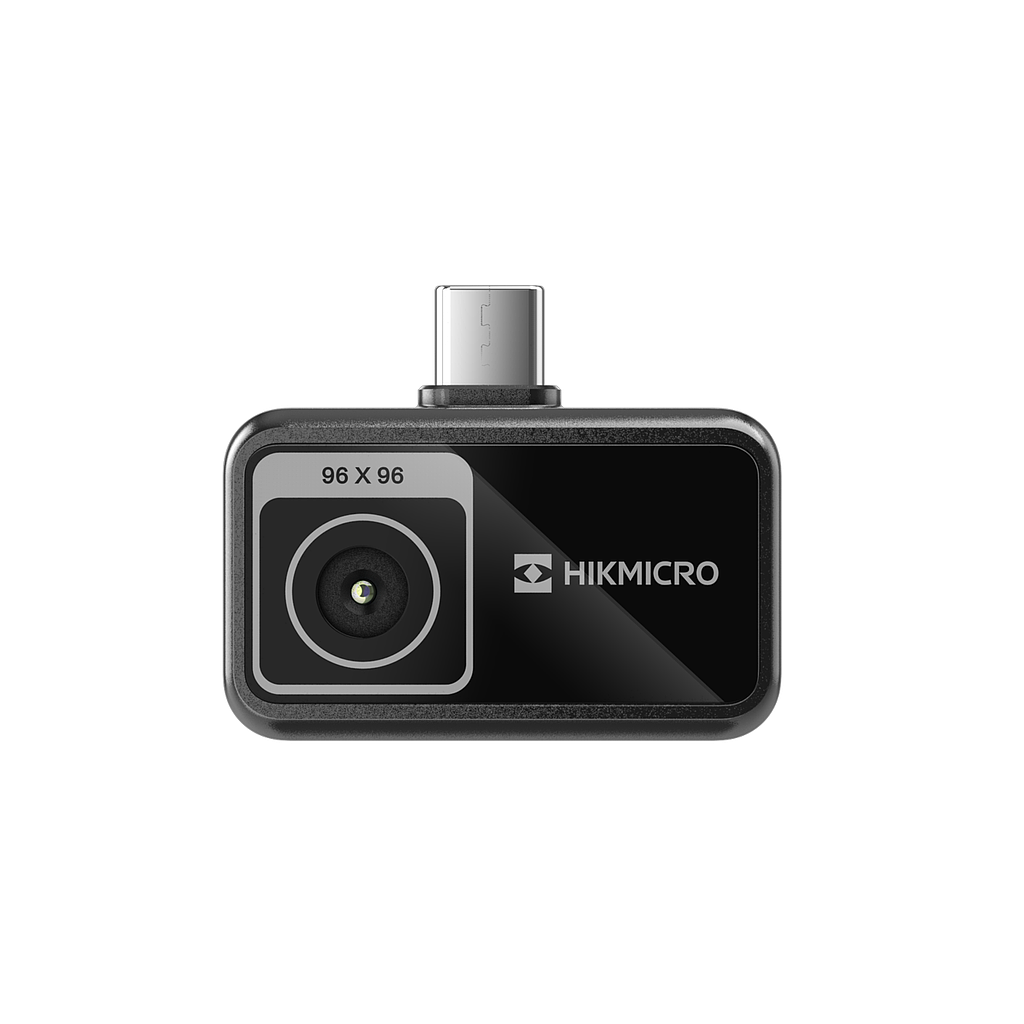

HIKMICRO MiniE Thermal Imager (9,216 pixels, -20°C~400°C)

Infrared Image

IR Resolution: 96 × 96 (9,216 pixels)

SuperIR: Yes, on captured images and live view

NETD: < 50 mK (@ 25 °C, F#=1.0)

Image Frequency: 25 Hz

Detector Pitch: 12 μm

Spectral Range: 7.5 to 14 μm

Focal Length: 1.35 mm

F-number: F1.0

Field of View (FOV): 50° × 50°

Min. Focus Distance: 0.1 m (0.33 ft)

Focus Mode: Focus Free

Image Display

Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined，Custom Palette

Image Modes: Thermal, PIP

Measurement and Analysis

Object Temperature Range

Range -20°C to 150°C（-4° F to 302°F)

Range 100°C to 400°C（212°F to 752°F）

Accuracy: Max (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)

Measurement Tools:

Center Spot, Hot Spot, Cold Spot

User-definable: 3 spots, 3 rectangles and 1 line .

Level and Span Mode: Auto/Manual

General

Power Consumption: 310 mW

Interface: USB-C Android, USB-C iOS, Lightning iOS (Includes a Lightning to USB-C adapter)

Device Compatibility: iOS (version 14 and later), Android (version 7 and later) smartphones and tablets, or Windows devices

Software Compatibility: HIKMICRO Viewer app for iOS and Android

Protection Level: IP40

Drop Test Height: 1 m (3.28 ft)

Working Temperature Range: -10°C to 50°C (14°F to 122°F )

Storage Temperature Range: -20°C to 60°C (-4°F to 140°F )

Dimension: 41.56 × 34.03 × 10.79 mm (1.64 × 1.34 × 0.42 in)

Weight Approx.: 20 g (0.044 lb)
