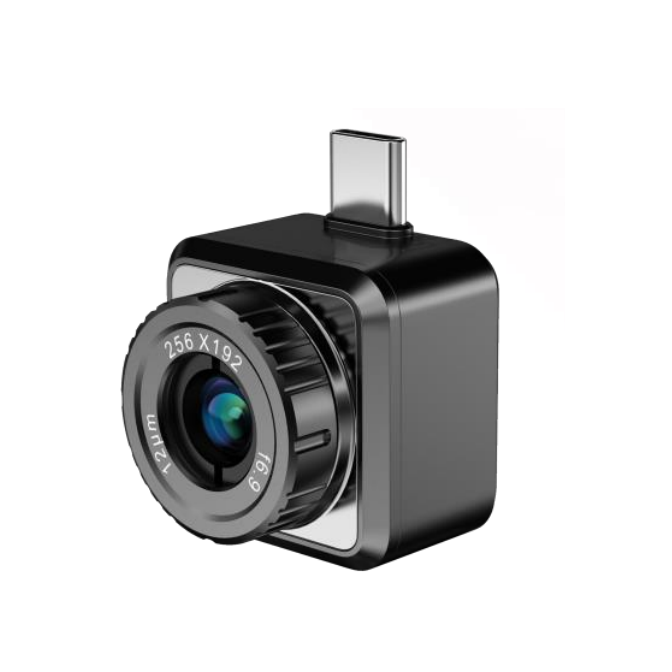

HIKMICRO Mini2 Plus Smartphone Module (256 x 192piexels; -20°C ~ 350°C,Type-C,Androi)

THAY THẾ BẰNG HIKMICRO Mini2 Plus V2

Infrared Image

IR Resolution: 256 × 192 (49.152 pixels)

NETD: < 40 mK (@ 25°C, F#=1.0)

Image Frequency: 25 Hz

Detector Pitch: 12 μm

Spectral Range: 7.5 to 14 μm

Focal Length: 6.9 mm

F-number: F1.0

Field of View (FOV): 25° × 18.8°

Min. Focus Distance: 0.1 m (0.33 ft)

Focus Mode: Focus Free

Image Display

Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined

Image Modes: Thermal/Fusion

Measurement and Analysis

Object Temperature Range: -20°C to 350°C(-4°F to 662°F)

Accuracy: Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)

Measurement Tools: Center Spot, Hot Spot, Cold Spot; User-definable: 3 spots, and 3 rectangles.

Level and Span Mode: Auto/Manual

General

Power Consumption: 360 mW

Protection Level: IP40

Drop Test Height: 1 m (3.28 ft)

Working Temperature Range: -10°C to 50°C (14°F to 122°F )

Storage Temperature Range: -20°C to 60°C (-4°F to 140°F )

Weight: Approx. 24 g (0.053 lb)

Dimension: 26.6 × 26.6 × 25 mm (1.05 × 1.05 × 0.98 in)
