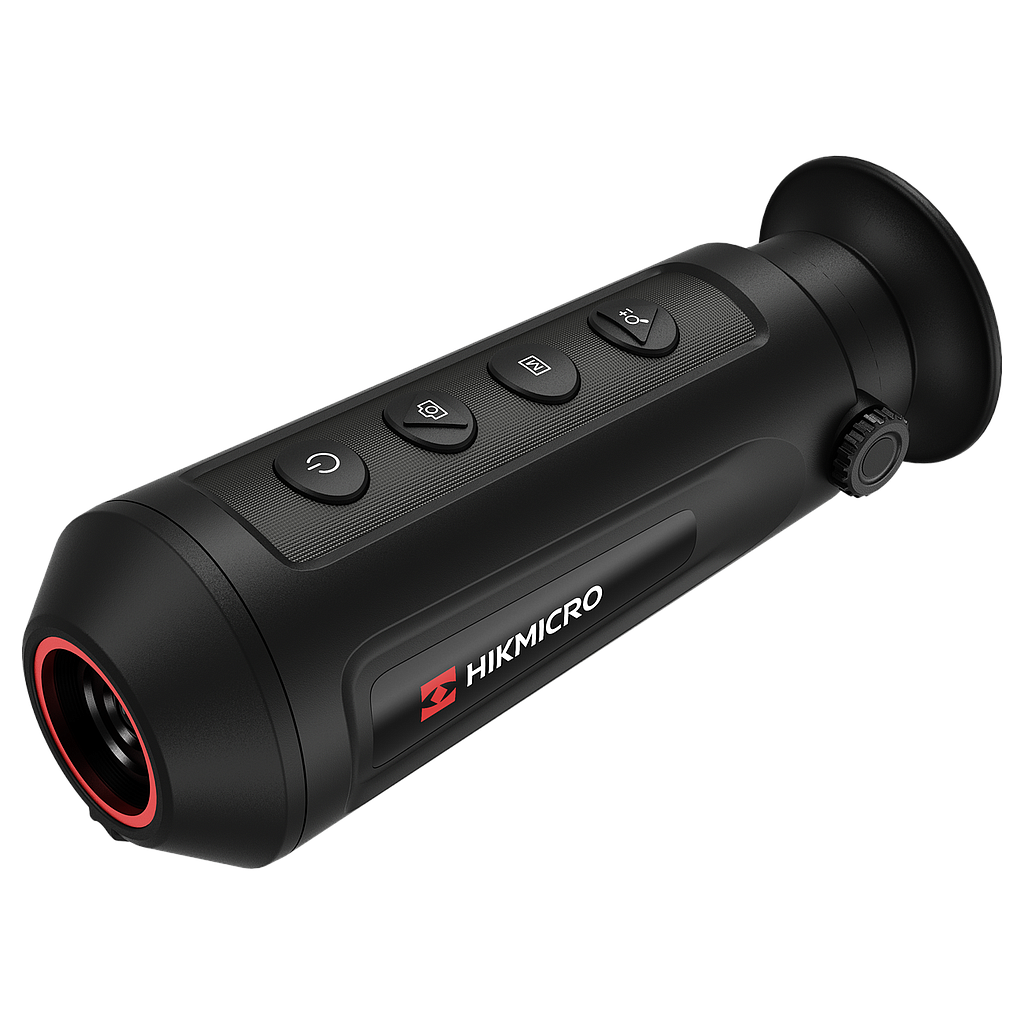

HIKMICRO LE10 Handheld thermal monocular camera (256 × 192 pixel)

Thermal Module

Image Sensor: VOx Uncooled Focal Plane Arrays

Max. Resolution: 256 × 192

Pixel Interval: 12 μm

Response Waveband: 8 μm to 14 μm

NETD: <35 mK (@25 °C, F# = 1)

Lens (Focal Length): 9.7 mm

Field of View: 18.00° × 13.55°(H × V)

Min. Focusing Distance: 2 m

Aperture: F1.0

Magnification: 1 to 8

Digital Zoom: 1 ×, 2 ×, 4 ×, 8 ×

Image Display

Frame Frequency: 25 Hz

Display: 0.2 inch, LCOS, 720× 540

Palettes: Black Hot, White Hot, Red Hot, Fusion

FFC (Flat Field Correction): Mode Auto, Manual, External Correction

Power Supply

Battery Type: Lithium battery

Battery Operating Time: 8 hours continuous running with Wi-Fi hot spot function off (@ 25 °C) , 6 hours continuous running with Wi-Fi hot spot function on (@ 25 °C)

Battery Capacity Display: Yes

General

Work Temperature/Humidity: - 20 °C to 55 °C (- 4 °F to 131 °F)

Power: 5 VDC/2 A, 1.5 W, Type-C Interface

Protection Level: IP67

Dimension: 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")

Weight: 260 g (0.57 lb)

Specification
