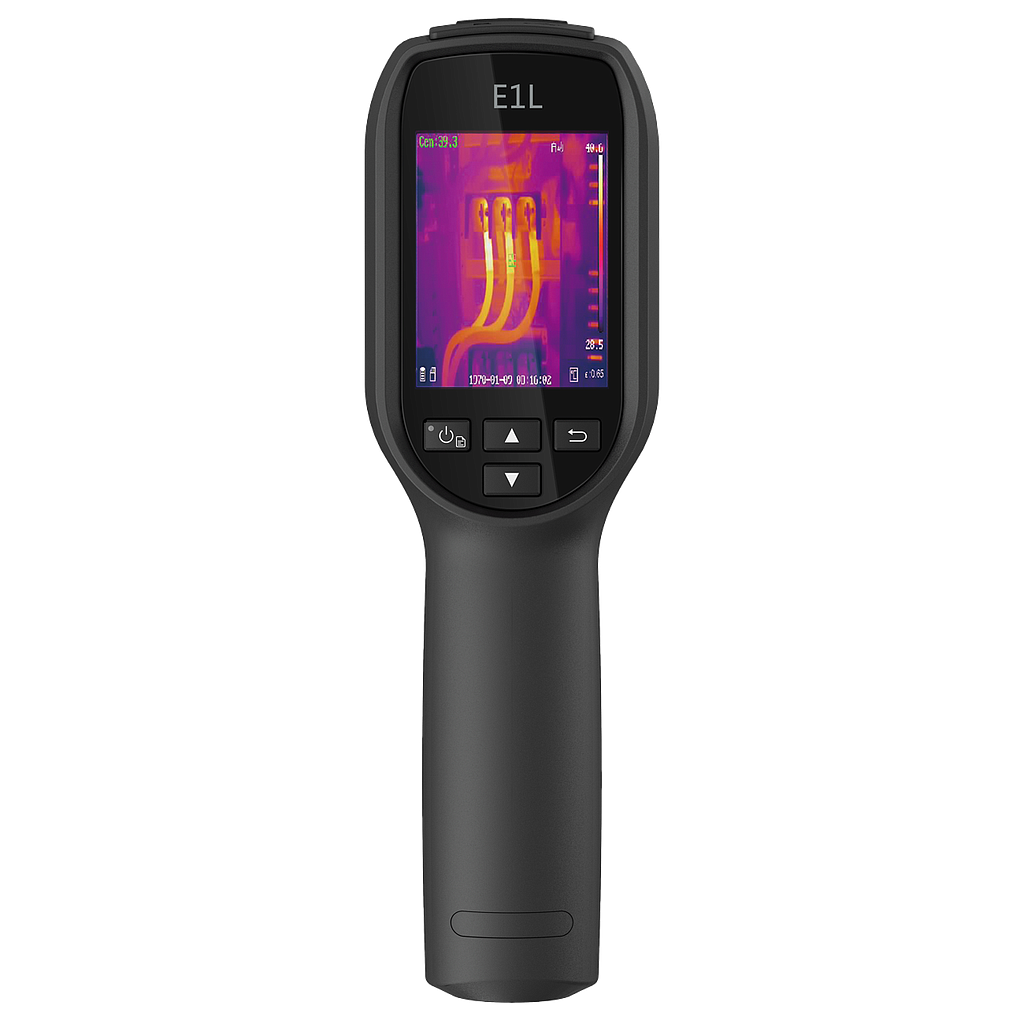

HIKMICRO HM-TP31-3AUF-E1L Handheld Thermography Camera (-20~550°C; 160x120px)

Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays

IR resolution: 160×120 (19 200 pixels)

Temperature measurement range: -20°C - 550°C (-4°F~1022°F)

Pixel pitch: 17μm

Spectrum range: 8-14μm

NETD < 40mK (@25°C, F#=1.0)

3mm lens

Thermographic accuracy: ±2℃ / ±2%

Focal length: 3.1 mm

FOV (Field of View): 37.2°×50°

Minimum focus distance: 0.15 m (0.49 ft)

Focus: Fixed

Image frequency: 25Hz

Aperture: F1.1

Display: 320 × 240 Resolution, 2.4’’ LCD Screen

Storage

Storage media: Removable Micro SD Card (8 GB)

Image storage capacity: 150 000 Images

Image file format: JPEG with Measurement Data Included

Power System

Power supply: 3.7 V DC/0.4 A

Power consumption: 1.2 W

Battery type: Rechargeable Li-ion Battery

Battery operating time: 8 Hours Continuous Running

General

Menu language: 17 Languages

Working temperature range: 20°C to 50°C (-4°F to 122°F)

Storage temperature range: -20°C to 60°C (-4°F to 140°F)

Protection level: IP54

Drop Test Height: 2 m (6.56 ft)

Interface: Micro USB

Weight: Approx. 350 g (0.77 lb)

Dimension: 196 mm × 117 mm × 59 mm (7.7"×4.6"×2.3")
