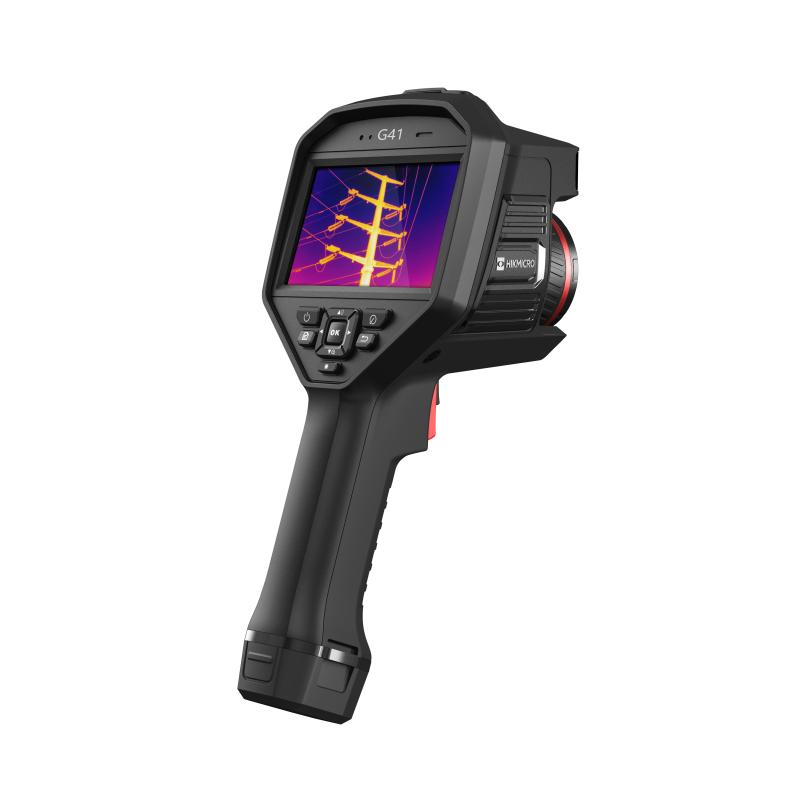

HIKMICRO G41H Handheld Thermography Camera (480x360pxl; -20°C~2000°C; 0.68 mrad)

Infrared Image

IR Resolution: 480 × 360 (172800 pixels)

SuperIR: 960 × 720 (691200 pixels)

NETD: < 35 mK (@ 25°C, F# = 1.0)

Image Frequency: 50 Hz

Detector Pitch: 17 μm

Spectral Range: 7.5 to 14 μm

Focal Length: 25 mm

F-number: F1.0

Field of View (FOV): 18.7°× 14°

Spatial Resolution (IFOV): 0.68 mrad

Min. Focus Distance: 0.3 m (0.98 ft)

Focus Mode: Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF

Focus Speed: Approx. 2 second

Image Display

Visual Camera: 3264 × 2448 (8 MP)

Display: 800 × 480 Resolution, 4.3" LCD Touch Screen

Screen Brightness: Manual/Auto

Digital Zoom: 1.0x to 8.0x continuous

Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red

Focus Mode: Palette Above/Below/Interval

Color Alarm: Above/Below/Interval/Insulation

Image Modes: Infrared/Visual/Fusion/PIP/Blending

Measurement and Analysis

Object Temperature Range: -20°C to 2000°C (-4°F to 3632°F)

Accuracy: Max. (± 2°C/3.6°F, ± 2%)

Measurement Tools: Center Spot, Hot Spot, Cold Spot; User-definable: 10 spots, 1 line, 5 rectangles, and 5 circle

Level and Span Mode: Auto/Manual/1-Tap Touch-screen

Inspection Route: Yes

Data Storage and Communication

Storage Media: Removable 64 GB MicroSD Card

Image Storage Capacity: Approx. 60,000 Images

Annotations: Voice note: max. 60 seconds; Text note: max. 200 characters

Video Storage Capacity: Approx. 54 hours

Video File Format: MP4 video and radiometric video

General

Wi-Fi: 802.11 b/g/n (2.4 GHz and 5 GHz)

Bluetooth: Bluetooth 4.2

USB Interface: USB Type-C

HDMI Interface: Yes

LED Light: Yes

Laser: Yes, Class II, Wavelength: 635 nm; Power: < 1 mW

Laser Distance Meter: Indoor distance: 50 m (164 ft); Outdoor distance: 10 m (33 ft).

Battery Type: Interchangeable and rechargeable Li-ion battery

GPS & Compass: Yes

Battery Operating Time: Approx. 4 hours

Battery Charging Time: Approx. 4 hours fully charged

Power Saving Mode: Yes

Protection Level: IP54, IEC 60529

Drop Test Height: 2 m (6.56 ft), IEC 60068-2-31

Safety: IEC 61010-1

EMC: EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3

Vibration: 2 g, IEC 60068-2-6

Shock: 25 g, IEC 60068-2-27

Working Temperature Range: -20°C to 50°C (-4°F to 122°F)

Storage Temperature Rang: -20°C to 60°C (-4°F to 140°F)

Relative Humidity: < 95% non-condensing

Weight: Approx. 1058 g (2.33 lb)

Dimension: 284.7 mm × 120.6 mm × 124.5 mm (11.21” × 4.75” × 4.9”)

Tripod Mounting: UNC ¼”-20
