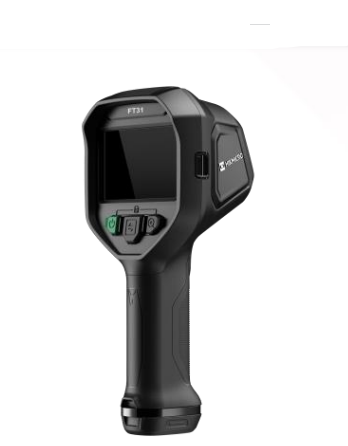

HIKMICRO FT31 Firefighting Thermal Camera (384 x 288; -20°C -1200°C; 2.42 mrad)

- Infrared Image

IR Resolution: 384 x 288 (110,592 pixels)

NETD : <35 mK (@ 25°C, F#=1.0)

Image Frequency : 60 Hz

Detector Pitch : 17 μm

Spectral Range : 7.5 to 14 μm

Focal Length : 7 mm

F-number : F1.6

Field of View (FOV): 54.1°×40.2°

Spatial Resolution (IFOV): 2.42 mrad

Min. Focus Distance : 1 m (3.28 ft)

Focus Mode : Focus Free

- Image Display

Display: 800 × 480 Resolution, 4.3" LCD Screen

Digital Zoom: 1x, 2x, 4x

Color Palettes : Basic, Black Hot, White Hot, Fire Detection, Rescue, Hot Area, Cold Area, Building

Image Modes : Thermal

- Measurement and Analysis

Object Temperature Range: -20°C to 1200°C (-4°F to 2192°F)

Accuracy: Max. (± 2°C/3.6°F, ± 2%), for ambient temperature -20°C to 50°C (-4°F to 122°F) and object temperature above 0°C (32°F)

Measurement Tools: Center Spot, Hot Spot, Cold Spot

- Data Storage and Communication

Storage Media: Built-in 32 GB flash memory

Image Storage Capacity: Approx. 100,000 Images

- General

USB Interface: USB Type-C

Battery Type: Interchangeable and rechargeable Li-ion battery

Battery Operating Time: Approx. 6 hours

Battery Charging Time: Approx. 3 hours fully charged

Protection Level: IP67, IEC 60529

Drop Test Height: 2 m (6.56 ft), IEC 60068-2-31

Safety : IEC 61010-1

EMC : EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3

Vibration : 2g IEC 60068-2-6

Shock : 25 g, IEC 60068-2-27

Working Temperature Range: -20°C to 50°C (-4°F to 122°F) 80°C(176°F)， 40min 150°C(302°F)， 15min260°C(500°F)， 7min

Relative Humidity : < 95% non-condensing

Storage Temperature Range : -20°C to 60°C (-4°F to 140°F)

Weight : Approx. 1022g (2.25 lb)

Dimension : 132.7×276.3×114.6 mm (5.2 × 10.9 × 4.5 in)

Tripod Mounting : UNC ¼”-20
