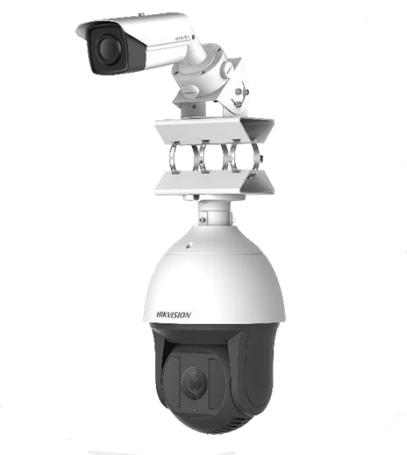

HIKMICRO DS-2TX3636-7P/V1 Thermal Smart Linkage Tracking System (1/1.9 ”, 120dB)

Fixed Camera

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays

Max. Resolution: 384 × 288

NETD: < 40mk (@25°C,F#=1.0)

Lens (Focal Length): 7 mm

IFOV: 2.43 mrad

Field of View: 60° × 43.8° (H × V)

Min. Focusing Distance: 0.8 m

Alarm Input: 2-ch inputs (0-5vDC)

Alarm Output: 2-ch relay outputs, alarm response actions configurable

Memory Card: Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 64G), support manual/alarm recording

Speed Dome

Image Sensor: 1/1.9” Progressive Scan CMOS

Min. Illumination: 50 IRE; Color: 0.002Lux @ (F1.5, AGC ON), B/W: 0.0002Lux @ (F1.5, AGC ON), 0 Lux with IR

Max. Image Resolution: 1920 × 1080

Focal Length: 5.7 to 205.2, 36×

Digital Zoom: 16 ×

Zoom Speed: Approx. 7.4s (Optical, Wide-Tele)

Angle of View: 58.7 ° to 2.0 ° (Wide-Tele)

Min. Working Distance: 10 mm to 1500 mm (Wide-Tele)

Aperture Range: F 1.5 to F 4.5

Focus Mode: Auto/Semiautomatic/Manual

IR Distance: Up to 200m

Alarm Input: 7-ch

Alarm Output: 2 –ch; Support Alarm Linkage

On Board Storage: Built-in Micro SD/SDHC/SDXC Card Slot, Up to 128GB, Support Manual/Alarm Recording

General

Mount: WallMount

Menu language: English

Power: 24 V AC/5A, Max. consumption: 80W (with IR and heater on), IR Light consumption: Max. 24 W, and Heater consumption: Max. 15 W

Working Temperature/Humidity: -40°C to 65°C (-40 °F to 149 °F); Humidity: 90% or Less

Protection Level: IP66 Standard; TVS 6000V Lightning protection, surge protection, voltage transient protection

Dimension: Φ266.6 mm × 908.1 mm (Φ10.5” × 35.8”)

Weight: 12.89 kg (Approx. 28.4 lbs)
