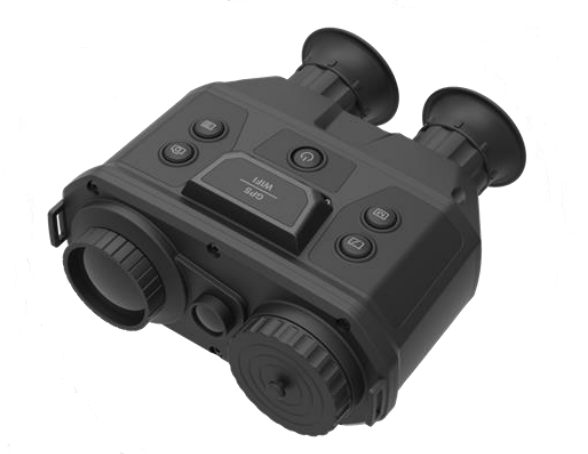

HIKMICRO DS-2TS16-35VI/W Handheld Thermal & Optical Bi-spectrum Binocular (640×512 pixel)

Thermal Module

Image sensor: Uncooled Focal Plane Arrays

Max. Resolution: 640 × 512@25fps

Pixel Pitch: 17μm

Response waveband: 8μm to 14μm

NETD: < 40mk (@25°C,F#=1.0)

Lens (focal length): 35mm

MRAD (IFOV: ) 0.486

Field of View: 17.7° × 14.2°

Aperture: F 1.0

Digital Zoom: 4×

Optical Module

Image Sensor: 1/3” Progressive Scan CMOS

Min. Illumination: B/W : 0.001 lux @ (F1.0 , AGC On )

Max. Resolution: 1280 × 960@25fps

Lens (focal length): 12mm, Manual focus

Image Enhancement: 3D DNR, Adaptive AGC

Image Display

Monitor: 0.39-inch, OLED, 1024 ×768

Thermal/Optical Mode: Thermal view, B/W optical view, image fusion view are selectable

Image Fusion: Color fusion, B/W fusion

Palettes: Black hot, white hot

Power Supply

Battery Type: Four 18650 batteries, requires 5 hours to be fully charged

Battery Operating Time: ≥7h

Battery Capacity Display: Yes

General

Power: 5V DC/2A

Working Temperature: -30 °C to 55 °C (-22 °F to 131 °F)

Protection level: IP67

Mounting : UNC 1/4”-20

Cable Output : Aviation plug: connecting to BNC, DB9, and USB

Accessories (Supplied): Battery charger, battery charger power cable, wiping cloth, two wrist straps, User manual, aviation plug cable, eight batteries

Dimension (L x W x H): 164mm × 182.3mm × 73.3mm (6.46" × 7.18" ×2.89")

Weight: <1.0kg (2.20 lb)
