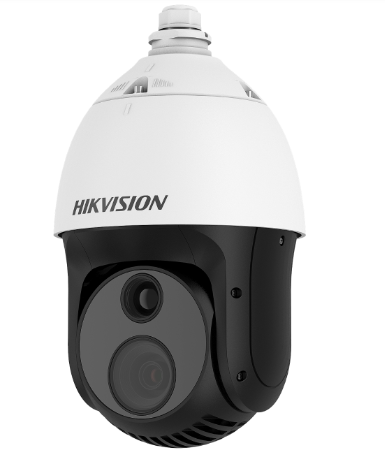

HIKMICRO DS-2TD4237-10/V2 Thermometric Thermal & Optical Bi-spectrum Network Speed Dome (384 × 288 pixel, -20~150°C)

Thermal Module

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays

Max. Resolution: 384 × 288 (the resolution of output image is 1280 × 720)

Pixel Interva: l 17μm

Response Waveband : 8μm to 14μm

NETD: less than 40 mK (25°C), F#=1.0

Lens (Focal Length): 10 mm

IFOV: 1.7 mrad

Field of View: 37.7° × 28.7° (H × V)

Min. Focusing Distance: 1.2 m

Aperture: F1.0

Optical Module

Image Sensor : 1/2.8" Progressive Scan CMOS

Max. Image Resolution: 1920 × 1080

Min. Illumination: Color: 0.05 Lux @(F1.2,AGC ON), B/W: 0.01 Lux @(F1.2, AGC ON)

Lens (Focal Length): 4.8-153mm

Field of View: horizontal FOV 58.4° to 2.14°, vertical FOV 33.8° to 1.2°, diagonal FOV 65.6° to 2.46°

Aperture Range: F1.2-F4.4

Focus Mode: Auto / Semiautomatic / Manual

WDR: 120 dB

Smart Function

VCA (Video Content Analysis): 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.

Temperature Measurement: 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).

Temperature Range: -20 °C to +150 °C (-4 °F to +302°F)

Temperature Accuracy: ± 8 °C (± 14.4 °F)

Fire detection: Dynamic fire point detection, up to 10 fire points detectable.

Infrared

IR Distance: Up to 100 m

IR Intensity and Angle: Auto Adjust

General

Menu language: English

Power: 24 V AC± 25%

Power Consumption: 30W

Working Temperature/Humidity: -30 °C to 60 °C (-22 °F to 140 °F), 90% or less

Protection Level: IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient protection

Dimensions: 305 mm × 185 mm × 163 mm (12.01 " × 7.28" × 6.42 ")

Weight : 3.9Kg (8.6lb)
