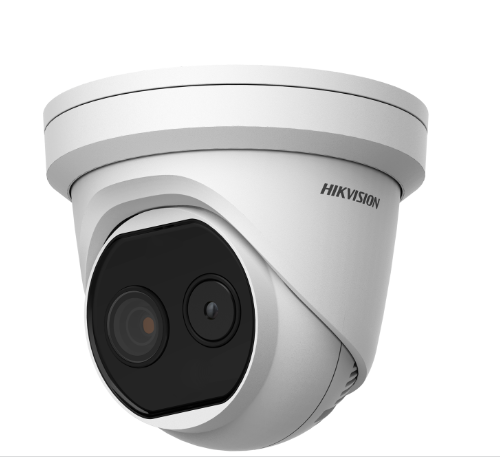

HIKMICRO DS-2TD1217-2/P Thermal & Optical Bi-Spectrum Network Turret Camera (160×120 pixel, -20°C~150°C)

Thermal Module

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays

Max. Resolution: 160 × 120 (the resolution of output image is 320 × 240)

Pixel Interval: 17 μm

Response Waveband: 8 μm to 14 μm

NETD : Less than 40 mK (25°C), F# = 1.1

Lens (Focal Length): 1.8 mm

IFOV: 9.44 mrad

Field of View: 90° × 66.4° (H × V)

Min. Focusing Distance: 0.1 m

Aperture: F1.1

Optical Module

Max. Image Resolution: 2688 × 1520

Image Sensor: 1/2.7" Progressive Scan CMOS

Min. Illumination: Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)

Shutter Speed: 1s to 1/100,000s

Lens (Focal Length): 2.1 mm

Field of View: 119.34° × 93.3°(H × V)
Aperture: F2.3

WDR: 120 dB

Image Function

Bi-spectrum Image Fusion : Display the details of optical channel on thermal channel

Picture in Picture: Display partial image of thermal channel on the full screen of optical channel

Target Coloration: Yes. Supported in white hot and black hot mode

Smart Function

VCA (Video Content Analysis): 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules totally.

Temperature Measurement: 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).

Temperature Range: -20 °C to +150 °C (-4 °F to +302 °F)

Temperature Accuracy: ± 8 °C (± 14.4 °F)

Fire detection: Dynamic fire point detection, up to 10 fire points detectable.

Infrared

IR Distance: Up to 15 m

IR Intensity and Angle : Automatically adjusted

General

Menu Language: 32 languages

Power: 12 VDC ± 20%, two-core terminal block, PoE (802.3af, class 3)

Power Consumption: 12 VDC ± 20%: 0.5 A, max. 6 W, PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W

Working Temperature/Humidity: -40 °C to 65 °C (-40 °F to 149 °F), 95% or less

Protection Level: IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient protection

Dimension: 138.3 mm × 138.3 mm × 123.1 mm (5.45 " × 5.45" × 4.85 ")

Weight: 940 g (2.07 lb)
