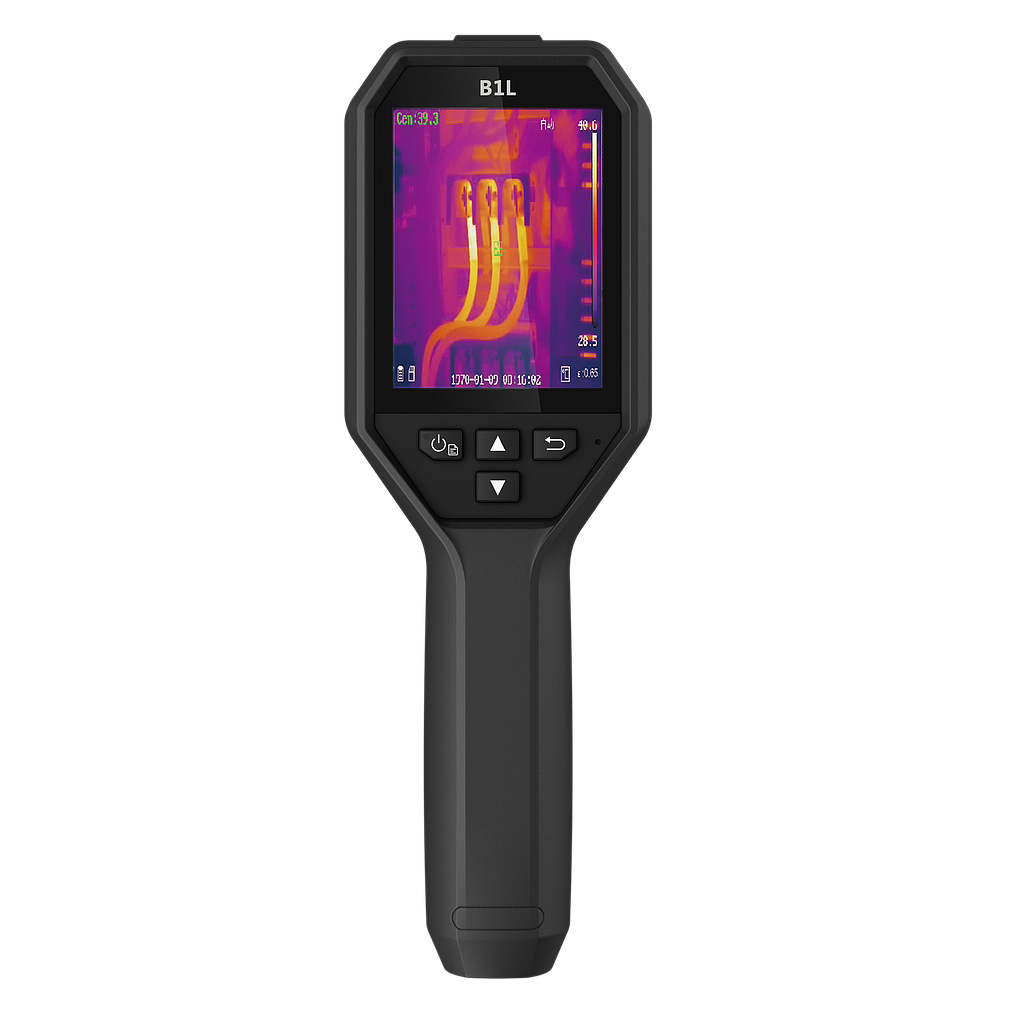

HIKMICRO B1L Handheld Thermography Camera (-20~550°C; 160x120px; Wi-Fi connectivity)

Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays

IR resolution: 160×120 (19 200 pixels)

Temperature measurement range: -20°C - 550°C (-4°F~1022°F)

Pixel pitch: 17μm

Spectrum range: 8-14μm

NETD < 40mK (@25°C, F#=1.0)

3mm lens

Thermographic accuracy: ±2℃ / ±2%

Focal length: 3.5 mm

FOV (Field of View): 32.9°×44.4°

Minimum focus distance: 0.3 m (0.98 ft)

Focus: Fixed

IFOV (Spatial Resolution): 4.85 mrad

Image frequency: 25Hz

Aperture: F1.1

Display: 320 × 240 Resolution, 3.2’’ LCD Screen

Storage

Storage media: EMMC (4 GB)

Image storage capacity: 30 000 Images

Image file format: BMP with Measurement Data Included

Power System

Power supply: 3.7 V DC/0.4 A

Power consumption: 1.5 W

Battery type: Rechargeable Li-ion Battery

Battery operating time: 8 Hours Continuous Running

General

Menu language: 17 Languages

Working temperature range: -10°C~50°C (14°F~122°F)

Storage temperature range: -20°C~60°C (-4°F~140°F)

Protection level: IP54

Drop Test Height: 2 m (6.56 ft)

Interface: USB Type-C

Weight: Approx. 360 g (0.79 lb)

Dimension: 221.7 mm × 123.8 mm × 73.5 mm (8.73” × 4.87” × 2.89”)

Wi-Fi: 802.11 b/g/n (2.4GHz)
