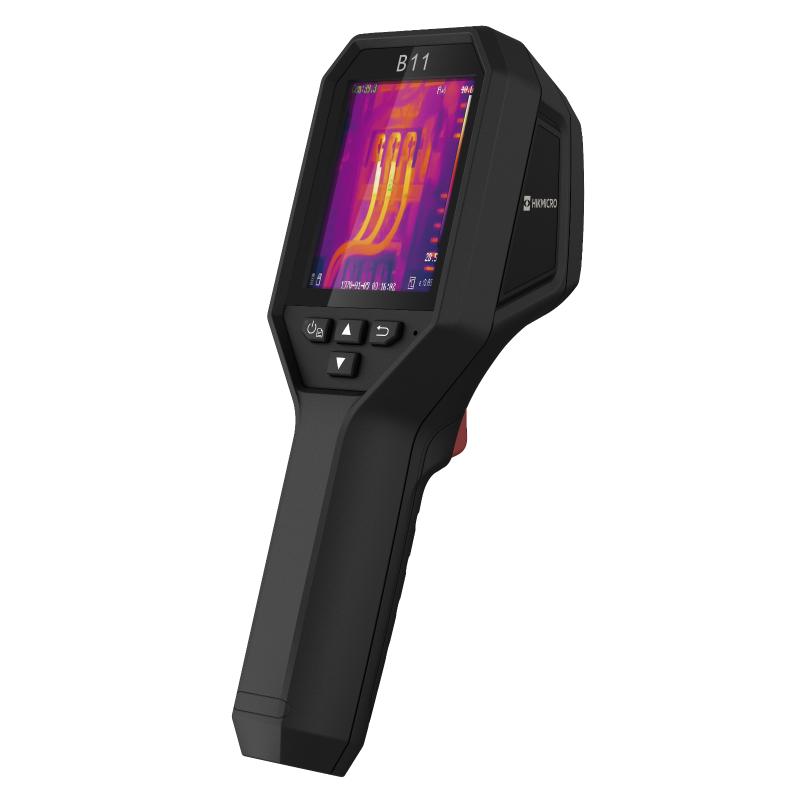

HIKMICRO B11 Handheld Thermal Camera (192x144pixel; -20°C~550°C)

THAY THẾ BẰNG MODEL B20S

Infrared Image

IR Resolution 192 × 144 (27,648 pixels)

NETD < 40 mK (@ 25°C, F# = 1.0)

Image Frequency: 25 Hz

Detector Pitch: 12 μm

Spectral Range: 7.5 to 14 μm

Focal Length: 3.6 mm

F-number: F1.0

Field of View (FOV): 27.8° × 37.2°

Spatial Resolution (IFOV): 3.3 mrad

Min. Focus Distance: 0.3 m (0.98 ft)

Focus Mode: Focus Free

Image Display

Display: 240 × 320 Resolution, 3.2”LCD Screen

Image Modes: Thermal/Visual/Fusion/PIP

Color Palettes: White Hot, Black Hot, Rainbow, Ironbow

Color Alarm: Above alarm

Visual Camera 1600x1200 (2MP)

Measurement and Analysis

Object Temperature Range: -20°C to 550°C (-4°F to 1022°F)

Accuracy: Max. (±2°C/3.6°F, ±2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F)

Measurement Tools: Center Spot, Hot Spot, Cold Spot

Level and Span Mode: Auto/Manual

Data Storage and Communication

Storage Media: Built-in 16 GB flash memory

Image Storage Capacity: Approx. 90,000 Images

General

Wi-Fi 802.11 b/g/n (2.4 GHz)

USB Interface: USB Type-C

Led light: Yes

Battery Type: Rechargeable Li-ion battery

Battery Charging Time: Approx. 3 hours fully charged

Battery Operating Time: Approx. 6 hours

Protection Level: IP54

Drop Test Height: 2 m (6.56 ft)

Working Temperature Range: -10°C to 50°C (14°F to 122°F)

Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)

Relative Humidity: < 95% non-condensing

Weight: Approx. 380 g (0.84 lb)

Dimension: 221.7 mm × 73.5 mm × 123.8 mm (8.73'' × 2.89'' × 4.87'')

Tripod Mounting: UNC ¼”-20
