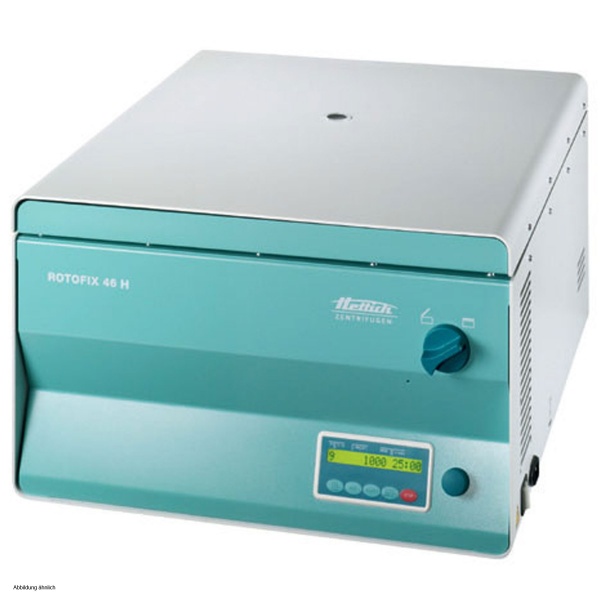

Hettich ROTOFIX 46 Benchtop Centrifuges (4 x 290 ml, 4000rpm)

Application: Procedures in organometallic chemistry / co-ordination chemistry (e.g., use of Schlenk tubes), Quality testing for chrome baths
Max. capacity:
+ In a swing-out rotor: 4 x 290 ml
Max. speed: 4000 rpm
Max. RCF: 3,095
Dimensions (H x W x D): 345 x 538 x 647 mm
Weight: approx 60 kg
Refrigeration: Air cooling
Frequently used rotors:
+ Angle rotor for 6 x 25 or 50 ml Schlenk tubes (45°), max. RCF 805 – Cat. No. 5616 (Option)
+ Swing-out rotor for 6 x 30 ml chrome bath tubes (90°), max. RCF 917 – Cat. No. 4619 (Option)
+ Swing-out rotor for max. 4 x 290 ml (90°), max. RCF 3,095 – Cat. No. 5694 (Option)
As their designated purpose is for general laboratory use only, the ROTOFIX 46 and 46 H are not medical products according to the IvD Directive. These centrifuges must, therefore, not be used for medical analyses or diagnostic purposes (clinical chemistry) within the scope of the IvD Directive.
Rotor: Option below

Catalog

	Swing-out rotor, 6-place, for chrome bath tubes Angle: 90° RPM max.: 2,000 min−1 RCF max.: 917 Cat. No. 4619
	Angle rotor, 6 plcae, for Schlenk tubes Angle: 45° RPM max.: 2,000 min−1 RCF max.: 805 Cat. No. 5616
	Swing-out rotor, 4-place, for ASTM tubes Angle: 90° RPM max.: 2,000 min−1 RCF max.: 984 Cat. No. 4474  (without carriers)
	Swing-out rotor, 4-place, Angle: 45° RPM max.: 4,000 min−1 RCF max.: 3,095 Cat. No. 5694
