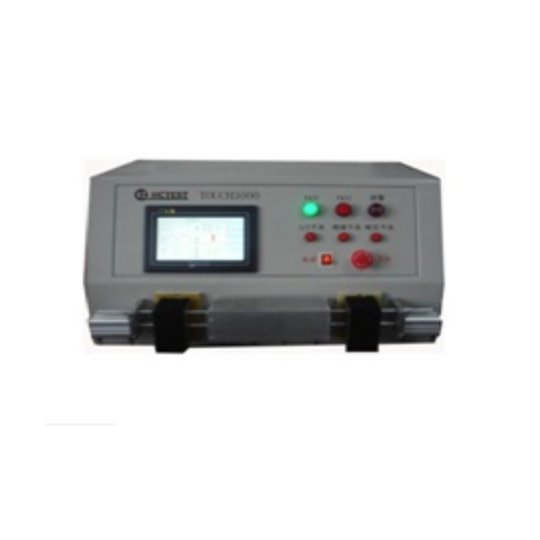

HCTEST Touch 3000 AC Power Cord Tester (47~63HZ; 5kVAC; 10mA)

Specification:

+ Power: AC, 47~63HZ, 220V, ±10%

+ Display: 7’ TFT LCD

+ File: 10 groups

Hi-Pot Test:

+ Output volt.: 5kVAC (max)

+ Output Rating: 10mA (max)

+ Output Frequency: 50HZ/60HZ (User selectable)

+ Output Waveform: Sine Wave, THD: Less than 2% at 300Vrms or higher voltage (Resistive Load), Crest Factor = 1.3~1.5

+ Voltage ratio: ±(1% Setting+5V), No load to full load

+ AC/DC Setting: 0.2~5kV, Accuracy: ±(2% Setting +5V)

+ DC Current, mA setting: 0~10mA, Accuracy:±(2% Reading+2Counts)

+ Test time: Range: 0.1~999.9s, 0.1s/Step

Insulation Test:

+ Output volt.: 1KVDC (max)

+ AC/DC Setting: 0.2~1kV, Accuracy: ± (2% Setting +5V)

+ Insulation setting:

1M~1000M; Accuracy: ±(2% Reading+2Counts)

1000M~9999M, Accuracy: ±(7% Reading+2Counts)

+ Test time: Range: 0.1~999.9s, 0.1s/Step

Polarity Test:

+ Volt.: 5VDC

+ Open/short: 1KΩ

+ LN Polarity Test: To set

+ Cable type: Single/Normal, Optional

Arcing: Setting Range: 1~9; 0=off

Decision mode:

+ NG: fail (LED). Speaker

+ PASS: Pass (LED). Speaker
