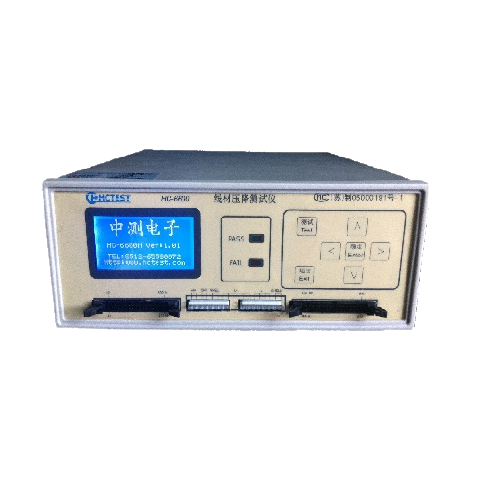

HCTEST HC-6600 Voltage Drop Tester (0~990mV; ±1%±2mV)

Trigger mode: Auto, Manual , External

Signal source:

+ Volt.: +5V constant current

+ Current: 0~2000mA

+ Accuracy: ±0.5% ±1mA

Test spec.:

+ Drop: 0~990mV

+ Accuracy: ±1% ±2mV

Test time: 0~10s

Delay time: 0~10s

Test mode: Single, Standard

Memory: 5 files

Interface:

+ 32Pin (2.54mm), Remote, DB9pin

+ 8Pin (3.96mm )*2

Temp. Humidity: 0~60°C, ≤90%RH

Power:

+ Volt: AC 220V ±10%

+ Freq.: 50Hz ±5%

Power consumption: ≤60W

Size (W×H×D): 320*280*100mm

Weight: ≈5kg
