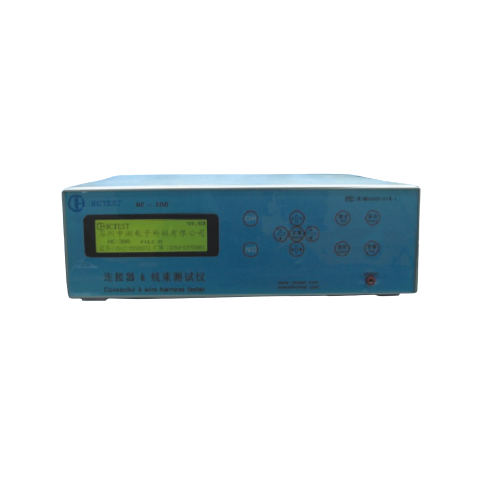

HCTEST HC-300 Harness Tester (12VDC)

Provide DC12V testing open/ short

Display: 128*64 LCD

Test item range:

+ Open/ Short (os): 5KΩ~50KΩ

+ Zener (D): 0~7V

+ Intermittent Open/Short (Int.os): 5KΩ~50KΩ

Test mode: NORMAL/ S.SIDE/ S.STEP

Communication interface: Handler/ Rs232/ Print/ USB

Scanning Mode: Auto/Short Switchable

Decision mode: Pass/ fail (led) . Speaker

Lock Mode: Standard lock

Starting mode: Auto/ Manual

Memory: 512KB

Comprehensive information

+ Power Input: 220V ±10% 60Hz

+ Power consumption: 200W

+ Temp.: -10°C~35°C

+ Humidity: RH≤ 75%

+ Size: 425*132*345 (128p. 256p or 512p); 425*240*350 (1024p)

+ Weight : 5kg (128/256p); 6kg (512p); 10kg (1024p)
