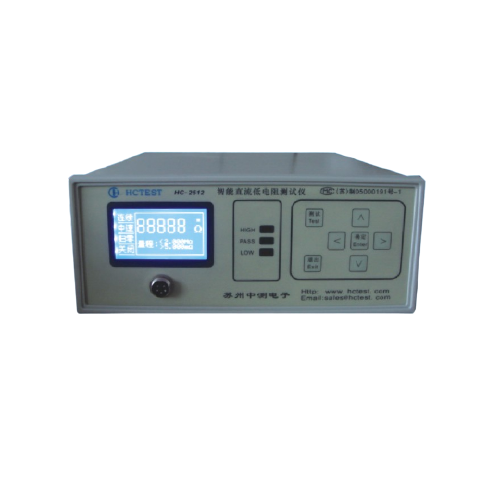

HCTEST HC-2512 DC Resistance Tester (1uΩ~2MΩ; 0.05%±2)

Basic Accuracy: 0.05%±2

Test Range: 1uΩ~2MΩ

Test current:

+ 1A/100mA/10mA/1mA

+ 100uA/10uA/1uA

Test gear:

+ 5mΩ/50mΩ/500mΩ/5Ω/50Ω

+ 500Ω/5KΩ/50KΩ/2MΩ

Resolution: 0.1uΩ

Test speed (t/ms)

+ Fast: 55t/sec

+ Medium: 66t/sec

+ Slow: 77t/sec

Comparator: High or low limited, Speaker

Trigger mode: Single / Continued

Power Input: 220V AC ±10%

Temp.: -10~40°C

Humidity: RH≤75%

Power consumption: Max 30W

Weight: ≈5KG

Size: 320*280*100mm
