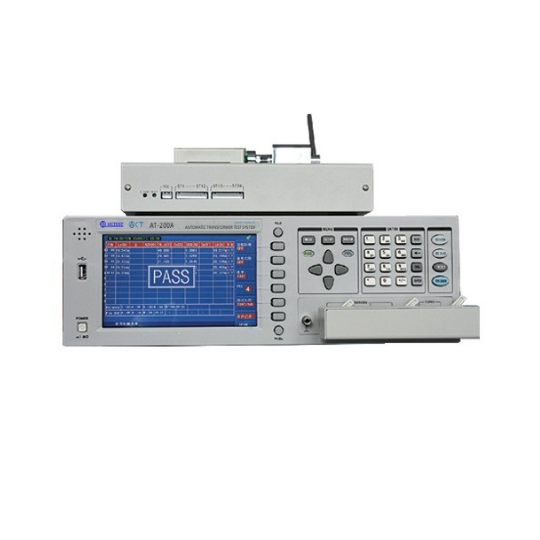

HCTEST AT-200 Automatic Transformer Tester (20Hz~300kHz; 10mHz step)

Test Freq: 20Hz~300kHz (10mHz step)

Basic Accuracy:

+ L.C.R.Z: 0.05%

+Turn Ratio: 0.1%

Equivalent Circuit: Series, Parallel

Comparator: Upper and Lower test limits in units and percentage

Test mode: Auto, Continued, Manual

Touch mode: Internal, Manual, External

Test speed (≥1kHz)

+ High Fast: 150t/sec

+ Fast: 90t/sec

+ Medium: 12t/sec

+ Slow: 3t/sec

Average number: 1~255

Delay Time: 0~60s, 1ms step

Calibration: open/ short/ load

Test configuration: Five end

Display mode: Δ, Δ%, V/I (Voltage/ current monitoring)

LCD: 7' LCD

Test signal:

+ Freq.: 20Hz~500kHz

+ Output impedance: 30Ω,100Ω, 10/100, 10/CC

+ Test Volt.: 5mV~2V; Accuracy: 10%

+ Memory: 100 (Internal). 500 (External)

+ Interface: RS232C. HANDLER, USB HOST (OPTION GPIB)

Temp. Humidity: 0~40°C, ≤90%RH

Power Volt.: 110V±10%; or 220±10%

Power Freq.: 47.5Hz~63Hz

Power consumption: ≤80VA

Size (W×H×D): 398×129×370mm

Weight: ≈9kg

Test Item

| Z|, |Y|, C, L, X, B, R, G, D, Q, θ,DCR
