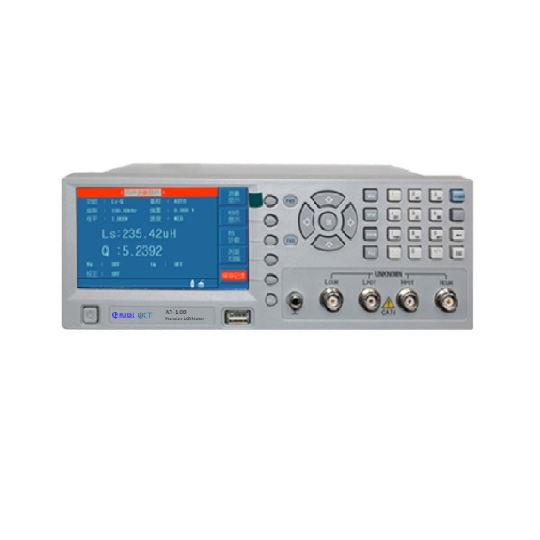

HCTEST AT-100 Precision LCR Meter (50Hz~100kHz; 10 points)

Test Freq: 50Hz,60Hz,100Hz,120Hz,1kHz,10kHz,20kHz, 40kHz, 50kHz,100kHz (10 points)

Basic Accuracy: 0.05%

Equivalent Circuit: Series, Parallel

Comparator: Upper and Lower test limits in units and percentage

Test mode: Auto, Continued, Manual

Touch mode: Internal, Manual, External

Test speed (≥1kHz)

+ Fast: 40t/sec

+ Medium: 11t/sec

+ Slow: 3t/sec

Average number: 1~255

Delay Time: 0~60s, 1ms step

Calibration: open/ short/ load

Test configuration: Five end

Display mode: Δ, Δ%, V/I (Voltage/ current monitoring)

LCD: 4.3' LCD

Test signal:

+ Freq.: 50Hz~100kHz

+ Output impedance: 30Ω,100Ω (Select)

+ Test Volt.: 0.1V, 0.3V, 1V; Accuracy: 10%

+ Memory: 100 (Internal). 500 (External)

+ Interface: RS232C. HANDLER, USB HOST (OPTION GPIB)

Temp. Humidity: 0~40°C, ≤90%RH

Power Volt.: 110V±10%; or 220±10%

Power Freq.: 47.5Hz~63Hz

Power consumption: ≤30VA

Size (W×H×D): 240x90x310mm

Weight: ≈2.5kg

Test Item

| Z|, |Y|, C, L, X, B, R, G, D, Q, θ
