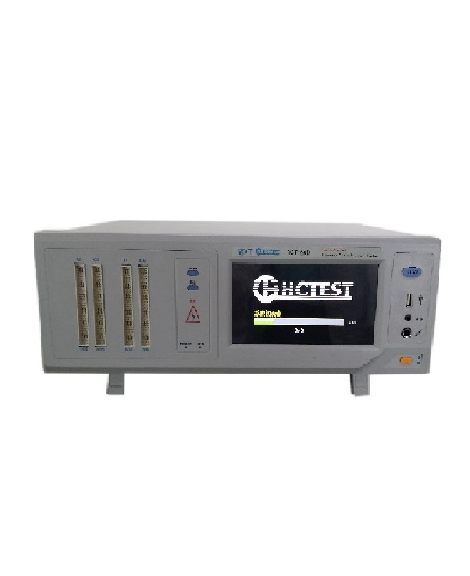

HCTEST ACT-60A Universal Cable/Harness Tester

AC high voltage: AC 700V

AC leakage current IL: 0.01mA~5mA

DC high voltage: DC  1000V

DC leakage current IL: 1 ~ 999uA

Arc detection ARC: 0 ~ 8

Insulation resistance IR: 1MΩ ~ 1GΩ​

Short circuit O/S: 200Ω~50KΩ

On-resistance COND: 0.1mΩ~50Ω

Component testing Resistors R: 0.1Ω~1MΩ

Capacitance: 10pF~5000μF

Capacitor polarity: ±

Diode: 0.0V~10V

Reverse current: 1μA~999μA

Test Mode: General circuit/single-side test/point test/single-side point test of on-resistance/sequential test

Measurement method: Series/Parallel

Determination method: Chinese and English voice alarm/speaker

LED / PASS FAIL display

Memory: 128M (about 200 files)

Scanning method: Manual/Continuous/Automatic (Short Circuit Start)

The A and B sides can be set to start sensing separately

Display device 800*480 TFT capacitive screen

Communication interface: USB/RS232/PRINT/HANDER

Work Environment:

Temperature  -10 ℃ ~ 40 ℃

Humidity RH  ≤ 75%

Power supply: Input 220VAC ±10% 60Hz

Maximum power consumption: 200W

Weight: About 13KG(64p)/14KG(128p)

Chassis size: Width 400mm*Height 260mm*Depth 150mm
