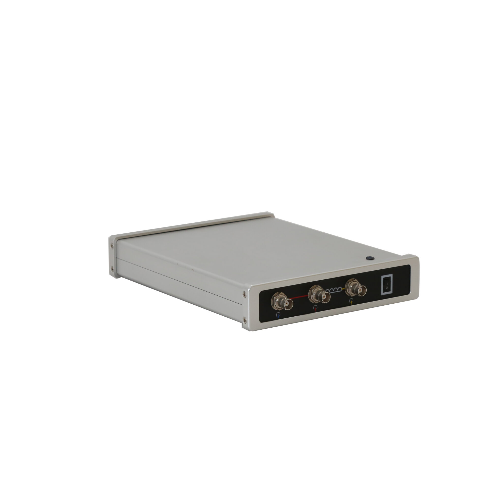

Zhiwei ZWRZ808 Sweep Frequency Response Analyzer (10Hz-2MHz)

Measuring speed: 1 min- 2 min for single-phase winding

Output voltage: Vpp-25V, adjusting automatically in test

Output impedance: 50Ω

Input impedance: 1MΩ (the response channel is built with 50Ω matching resistance)

Frequency sweep scope : 10Hz-2MHz

Frequency accuracy: 0.001%

Frequency sweep manner: linear or logarithmic, frequency sweep interval and number of sweep points are freely settable

Curve display: amplitude-frequency curve

Width of measuring dynamic range: -100dB~20dB

Supply voltage:AC100-240V 50/60Hz (use DC12V Adapater recommend)
