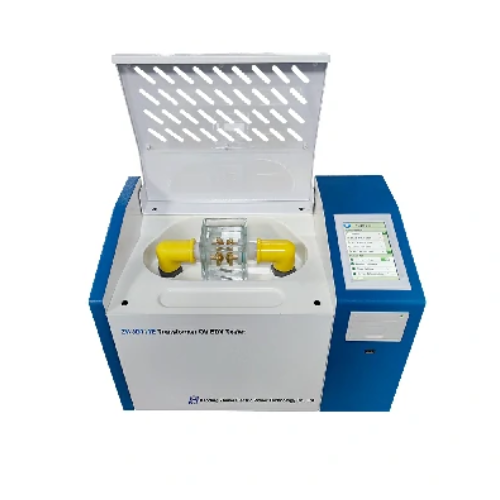

Zhiwei ZWJD111E Transformer Oil Breakdown Voltage Tester (1.5kva)
ManufacturerHB.ZHIWEI(View more products from this manufacturer)
ModelZWJD111E
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Output voltage: 0~80kV (optional)
Voltage distortion rate: ＜3%
Booster capacity: 1.5KVA
Measuring accuracy: ±3％
Memory for result: 100 group
Volume of the oil cup: 350ml/250ml
Gap between the poles: 2.5 mm (Electrode gap is adjustable)
Power: 200W
Temperature in operation: 0~45℃
Applicable humidity: ＜75%RH
Power supply in operation: AC220V±10%, 50Hz±1Hz
Overall dimension: 460mm×280mm×320 mm
Weight: 33kg
