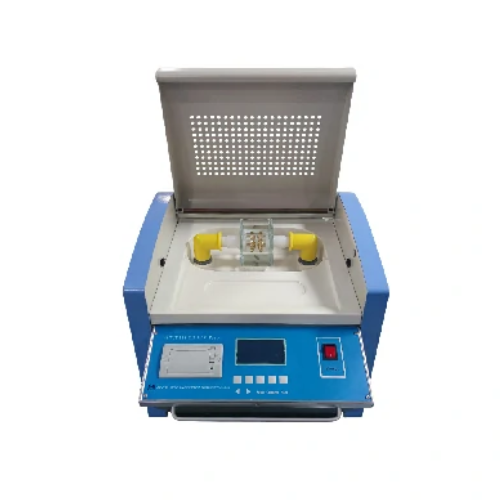

Zhiwei ZWJD111 Transformer Oil Breakdown Voltage Tester (1.5kva)
ManufacturerHB.ZHIWEI(View more products from this manufacturer)
ModelZWJD111
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Booster capacity: 1.5kva
Boost speed: 0.5kV/s-5.0kV/s(adjustable)
Output voltage: 0 ~ 80 kV（100kV）
Power supply distortion rate: < 3%
Electrode gap: Standard 2.5mm
Measuring accuracy:±3％
Standing time: 15min (adjustable)
Boosting interval: 5 min (adjustable)
Boosting frequency: 1～9 time(s) (optional)
Overall dimension: 480mm*380 mm *420 mm
Ambient temperature: 0 ~ 45℃
Relative humidity:≤75%RH
Working power:AC 220V ± 10%
Power frequency:50 Hz ± 1 Hz
Power consumption:< 200w
