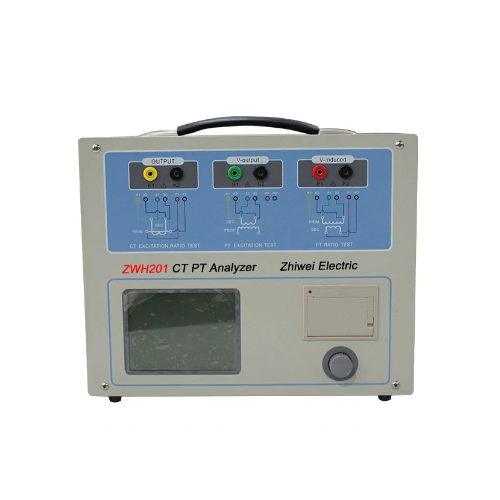

Zhiwei ZWH201 CT PT Analyzer (1~40000)
ManufacturerHB.ZHIWEI(View more products from this manufacturer)
ModelZWH201
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Output: 0~180Vrms，12Arms，18A（peak value）
Voltage measurement accuracy: ±0.1%
CT Ratio: 1~40000/ ±0.05%
PT Ratio: 1~40000/ ±0.05%
Phase: ±2min/ 0.5min
DC resistance: 0~300Ω/ 2%±2mΩ
Burden: 0~1000VA/ 2%±0.2VA
Power supply: AC220V±10%，50Hz
Environmental Conditions: Operating temperature :-10°C ~50°C,Humidity :≤90%
Weight and Dimensions:
+ Dimensions: 365 mm×290 mm×153mm
+ Weight: <10kg
